410/130/304/195
720510
STAINLESS STEEL SHOT & CUT WIRE SHOT

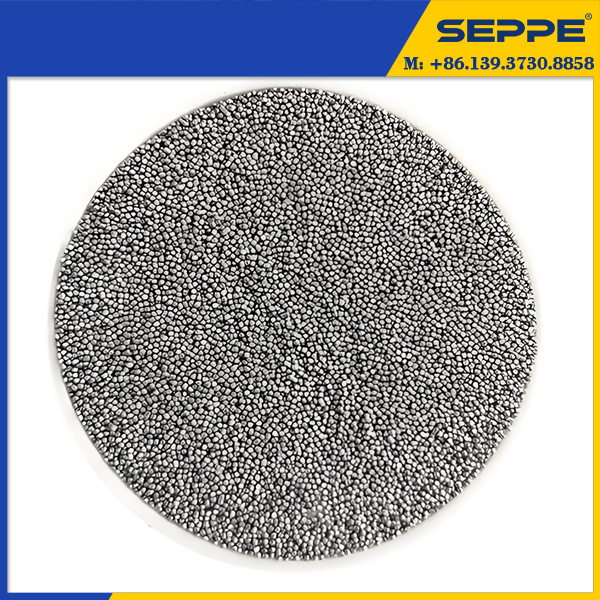

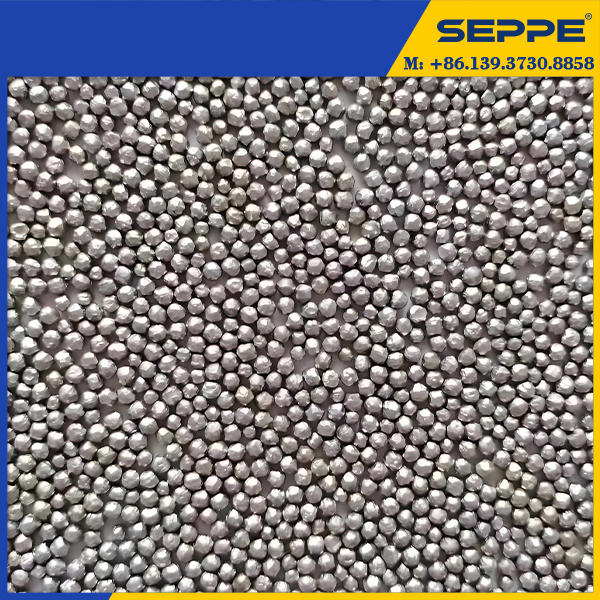

Stainless steel shot is made of 304 / 430 stainless steel via water atomization & solution heat treatment, bright silvery spherical shape, rust-free.

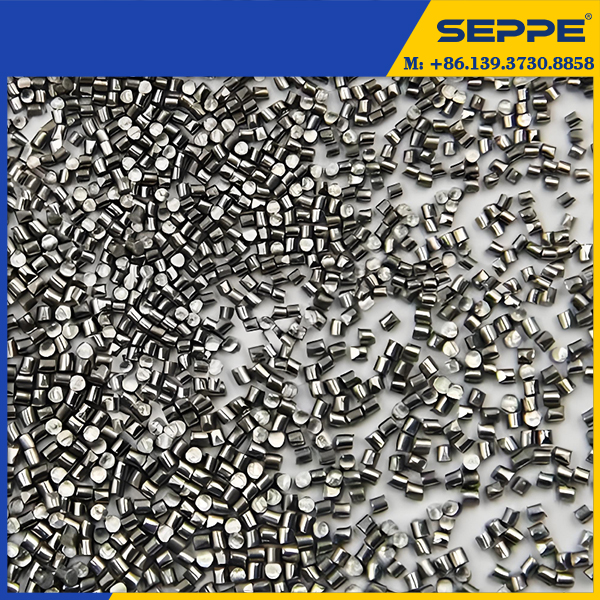

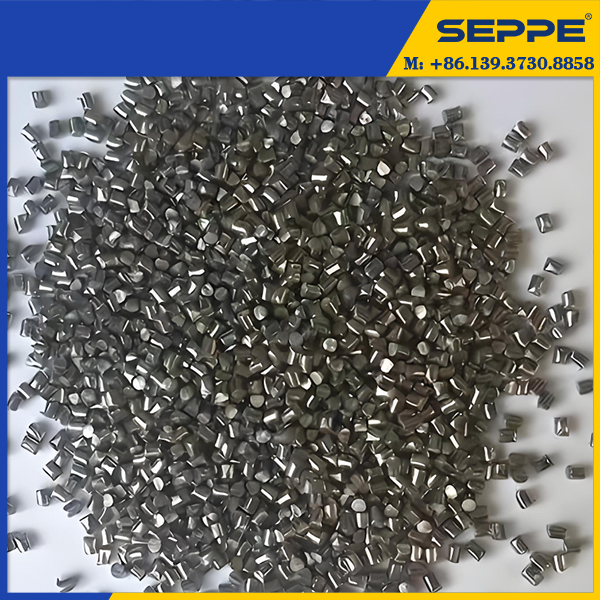

Stainless Steel Cut Wire Shot is cut from solid stainless steel wire into short cylinder shape, fiber metal structure, better cutting ability. Available in 430/304/316, 316 resists acid & seawater corrosion.
Typical Technical Data
| Grade | Chemical Composition % | ||||||
| Mn | Cr | Ni | C | Si | S | P | |
| 410 Stainless | 0.85 | 12.32 | - | 0.10 | 0.35 | 0.019 | 0.025 |
| 430 Stainless | 0.48 | 16.13 | - | 0.09 | 0.50 | - | - |
| 304 Stainless | 0.99 | 18.80 | 8.12 | 0.05 | 0.56 | 0.019 | 0.025 |
| 195 Stainless | 0.34 | Mo: 0.012 | Fe: 99.638 | - | - | - | - |
| Physical Properties (all grades) | |||||||
| Tensile Strength | 1300-2200 Mps | ||||||
| Ervin Life Cycle | 7000 cycles | ||||||
| Average Hardness | 308-509 HV (Vickers); 32-50 HRC (Rockwell) | ||||||
| Hardness Tolerance | ±3.0 HRC max | ||||||
| Density | 7.8g/cm3 | ||||||
| Apparent Density | 4.5g/cm3 | ||||||
Advantages of stainless steel shot
1. Stainless and non oxidizing, the workpiece after shot blasting has no iron pollution and will not produce rust spots;
2. Spherical soft impact, only brightens and does not scratch aluminum, zinc, magnesium alloys, and stainless steel workpieces;
3. Low dust and long cycle life.
Application scenarios

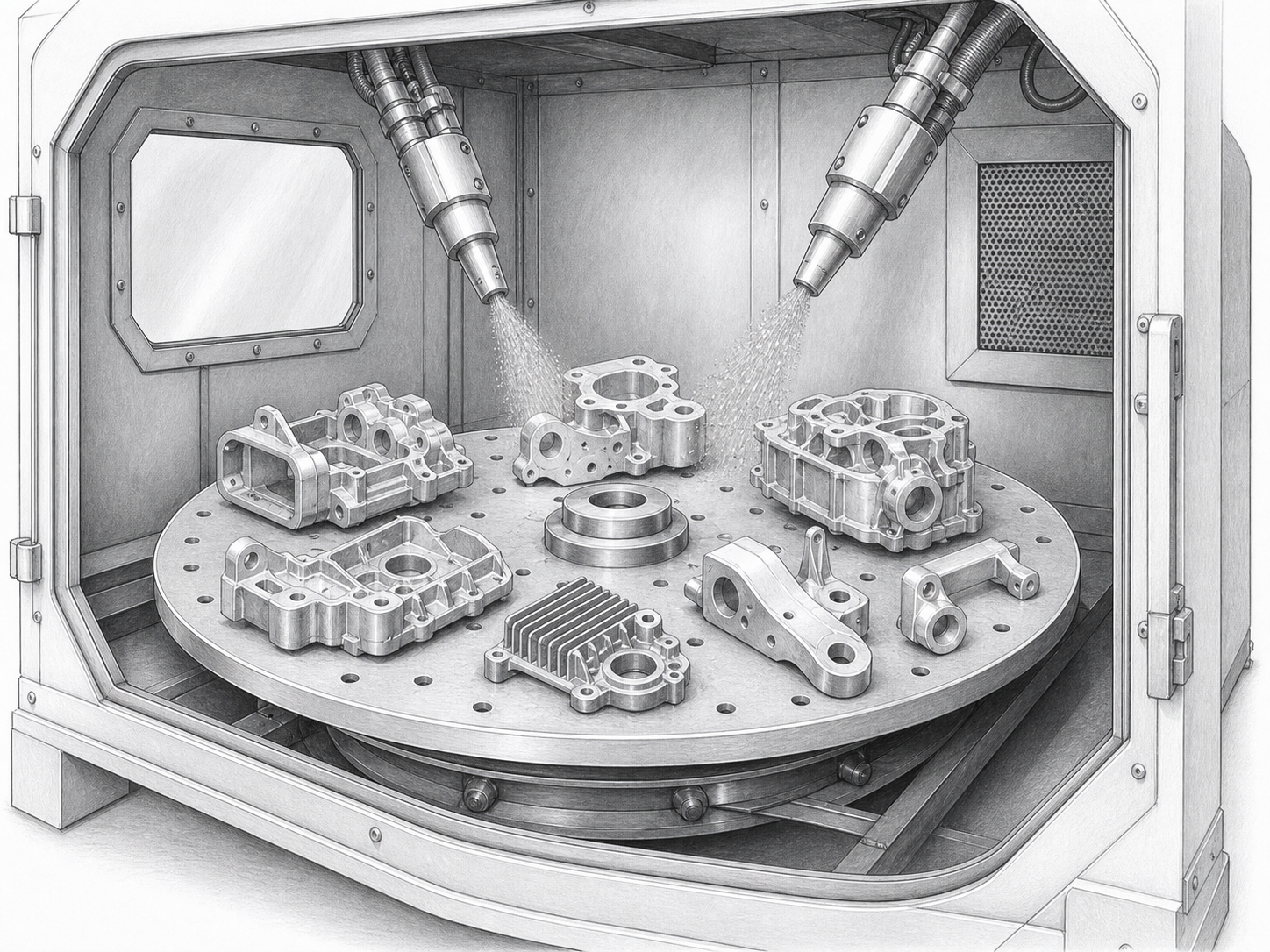

Aluminum alloy die-casting, zinc alloy, stainless steel hardware, die-casting bathroom, polished matte jewelry, food equipment workpieces, precision die-casting with black skin removal.
Advantages of stainless steel wire cut shot
1. With a slight cutting edge, it can both remove rust and remove stubborn burrs;
2. Stainless, non carburizing, and non iron element pollution high-end workpieces;
3. The crushing rate is extremely low, and the service life is better than that of cast stainless steel pellets.
Application scenarios
Stainless steel casting deburring, titanium alloy, aviation accessories, die-casting large parts, valve rework, and sandblasting strengthening of wet offshore workpieces.
Size Selection Guide
Recommneded size ranges by application and workplace type
| Size Range | Recommended Application |
2.5mm 2.0mm 1.5mm | Cleaning, descaling, deburring, and shot peening of large stainless steel and high-alloy precision castings, stainless steel forgings, stamping parts, stainless plates and tubes, and stone surfaces. |
1.0mm 0.8mm 0.6mm | Surface cleaning, descaling, deburring, and peening of small-to-medium stainless precision castings, aluminum and magnesium die castings, copper-zinc alloy precision castings, stainless castings, stamping parts, stainless plates and tubes, molds, glass products, and stone. |
0.5mm 0.4mm 0.3mm 0.2mm | Surface cleaning, descaling, deburring, and peening of small stainless precision castings, aluminum and magnesium die castings, copper-zinc alloy precision castings, stainless castings, stainless plates and tubes, molds, and glass products. |
Selection difference
Spherical stainless steel ball: seeking a smooth and polished surface, matte finish, and no damage to the surface → polishing of aluminum and small parts.
Stainless steel wire cutting ball: deburring, removing thick oxide skin, strengthening workpieces → heavy-duty stainless steel/titanium alloy castings.
