Product Details

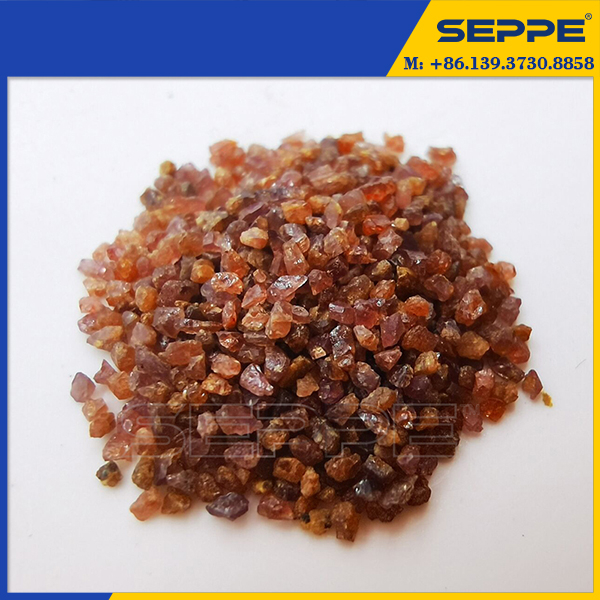

Water Filtration Garnet in Multi Media Filters

High density garnet for water filtration in multi - media filters solves a major filtration problem.
sharethis sharing button
  • 0.8-1.2mm


  • 25132000


High density Garnet for water filtration in multi-media filters solves a major filtration problem. A designed multi-media filter system includes filter media of large grains on top and small partices in the bottom of filter, providing superior performance after many backwashings. The solid substances are getting into the entire filter bed, resulting ingrowig solids storage, longer filter runs and higher filtration rates.

Chemical Composition & Physical Property

Chemical Composition
Al2O3 17-25%
SiO2 34-40%
FeO+Fe2O3 28-31%
MgO 5-8%
MnO 0-1%
TiO2 0-1%
CaO 1-2%
Physical Property
Bulk Density 2.1-2.4g/cm3
Specific Gravity 4.0-4.2g/cm3
Hardness 7.5-8.0 Mohs
Common Size

4/8, 8/12, 10/16,

16/30, 20/40

Water filtration media

Garnet is a natural hard and high density filter materials used in multi-media water filtration and is recommended as a support bed for other materials such as sand.

Garnet has a large ratio, no organic matter and soluble acid, so it has its advantages in filtering water. It competes with silica sand, ilmenite, magnetite and others in cost, durability and effectiveness. Garnet has stable properties and low price, which can be widely used in petroleum and water treatment industry.

Garnet as water filtration media, with wear resistance and corrosion resistance, small particles, moderate porosity characteristics, can filter out 10 μm impurities in water, with other types of filter material use, the effect is better.

Packing & Delivery

garnet package

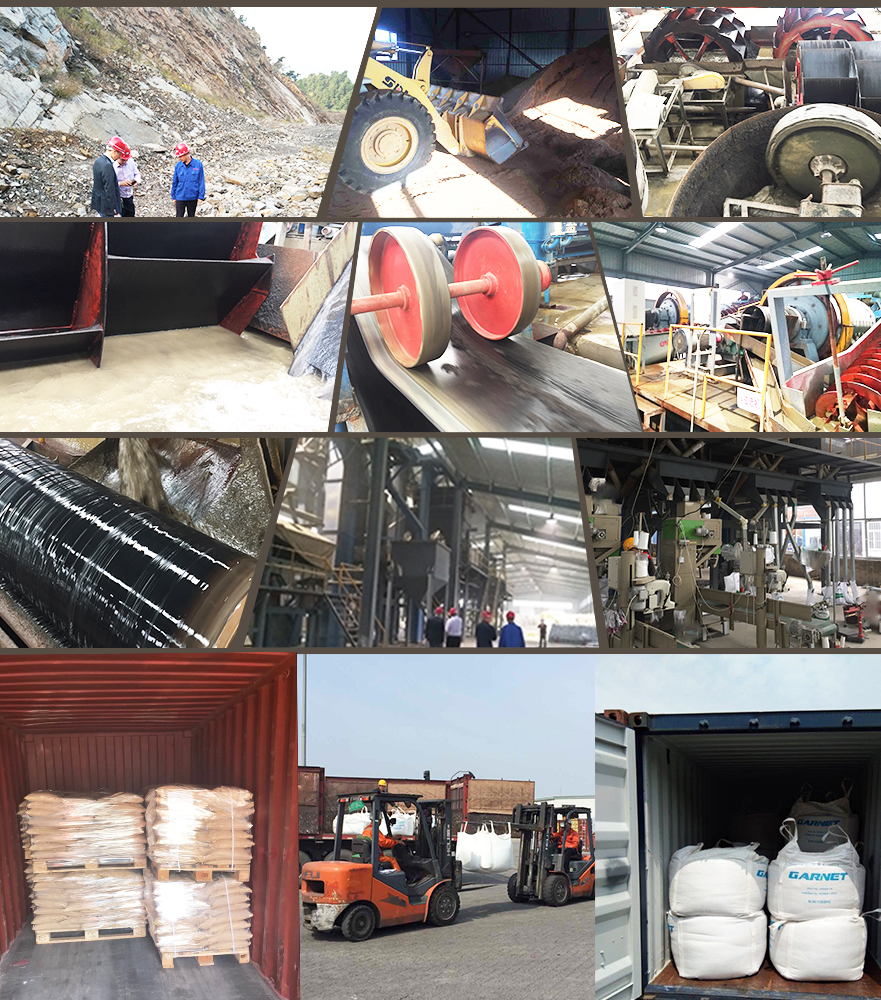

China Garnet
