| Quantity: | |
|---|---|
P60 P80 P120
SEPPE Abrasive
2818101000

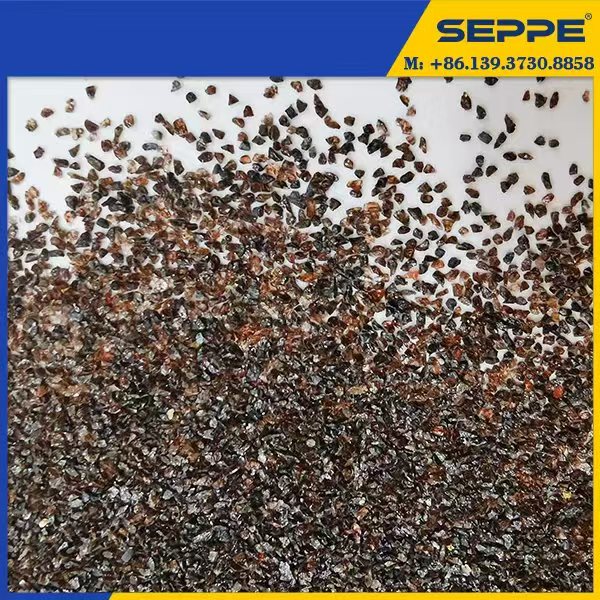

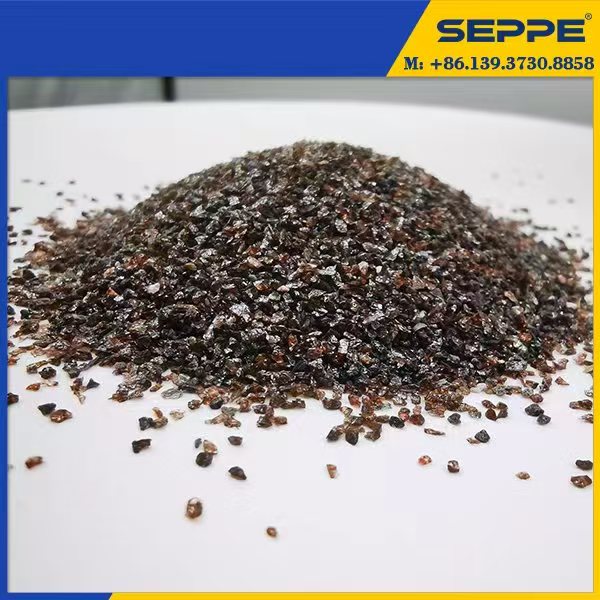

Brown Corundum Abrasive For Abrasion Wheels
SEPPE Brown Corundum Abrasive for abrasion wheels is a tough brown fused alumina grain designed for resin bonded and vitrified bonded grinding wheels, cutting wheels, mounted points and abrasive blocks. With high hardness, controlled toughness and stable F grade particle size, it supports aggressive metal grinding, edge retention and reliable wheel performance.
▸ This product is selected from brown fused alumina and screened mainly for bonded abrasive tool production.
▸ The grain is designed to resist premature breakdown while keeping sharp cutting edges during grinding wheel and cutting disc operation.
▸ SEPPE supplies common F grades for resin wheels, vitrified wheels, grinding stones and cutting tools.
▸ Stable F Grit Control: Sieve distribution is controlled for bonded abrasive wheel production and consistent wheel structure.
▸ Good Cutting Ability: Angular brown corundum grains provide strong cutting action for carbon steel, alloy steel and general metal grinding.
▸ Bonding Compatibility: Controlled grain cleanliness and particle size help support resin and vitrified bond systems.
▸ Tough Grain Strength: Good toughness helps reduce excessive grain breakage under grinding pressure.
▸ Reliable Batch Quality: Chemical composition, magnetic material and particle size are checked by batch before shipment.
| Purpose | Specification | Al₂O₃ | Fe₂O₃ | SiO₂ | TiO₂ |
|---|---|---|---|---|---|
| Bonded Abrasive F | F24-F80 | 95.0% Min | 0.3% Max | 1.5% Max | 3.0% Max |
| Bonded Abrasive F | F90-F150 | 95.0% Min | 0.3% Max | 1.5% Max | 3.0% Max |
| Bonded Abrasive F | F180-F220 | 94.0% Min | 0.3% Max | 1.5% Max | 3.5% Max |
| Color | Brown / Dark Brown |
| Main Crystal Phase | α-Al₂O₃ |
| Mohs Hardness | Approx. 9 |
| Specific Gravity | Approx. 3.9-4.0 g/cm³ |
| Melting Point | Approx. 2050°C |
| Available Forms | F grits for grinding wheels, cutting discs, mounted points and abrasive blocks |
▸ High-quality bauxite selection → Electric arc furnace fusion → Cooling and crystallization → Crushing → Magnetic separation → Screening and classification → Final inspection → Packaging.
▸ The process is designed to control F grade screening accuracy, grain toughness, magnetic material and cleanliness for bonded abrasive wheel production.
▸ F grade particle size distribution is checked by sieve analysis according to order requirements.
▸ Al₂O₃, Fe₂O₃, SiO₂ and TiO₂ are tested to support stable abrasive grain chemistry.
▸ Magnetic material and visual cleanliness are reviewed before packaging.
▸ Batch COA, retained samples and third-party inspection can be arranged for wheel manufacturers.

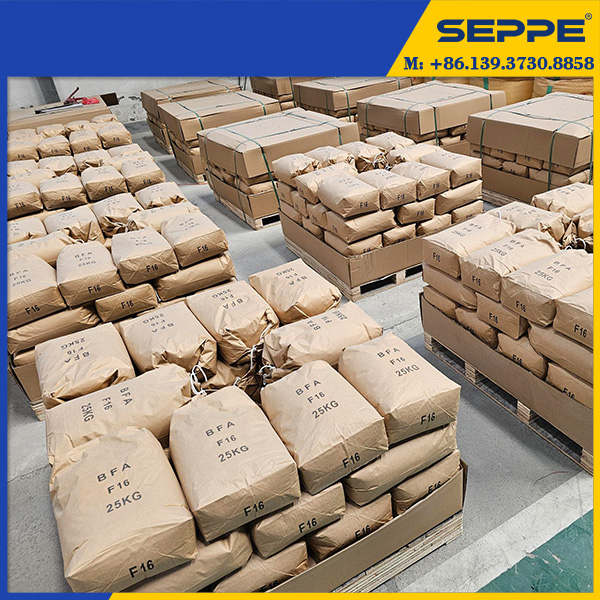

▸ Common packaging includes 25 kg bags, paper bags, 1 MT jumbo bags and customized packaging according to order requirements.
▸ Palletizing, container loading, private label packaging and inspection support can be arranged upon request.
▸ Store in dry conditions and protect bags from moisture, contamination and package damage before use.
▸ F24-F220 are common choices. Coarser grades are used for heavy grinding, while finer grades support smoother finishing.
▸ Yes. It can be used for resin bonded cutting wheels, grinding wheels and abrasive blocks according to formulation requirements.
▸ Yes. Magnetic separation and inspection are included to reduce magnetic impurities for bonded abrasive applications.
▸ Yes. Standard and custom F grit specifications can be discussed according to wheel production requirements.
Contact SEPPE for grit size selection, chemical specification, COA, samples, packaging and bulk order support.
