Not every black mark means corrosion. Black streaks after stainless steel blasting may come from iron contamination, dirty equipment, low-quality abrasive, or improper blasting parameters.
Identifying the real cause early can help prevent failed inspections, rework, and long-term corrosion problems.

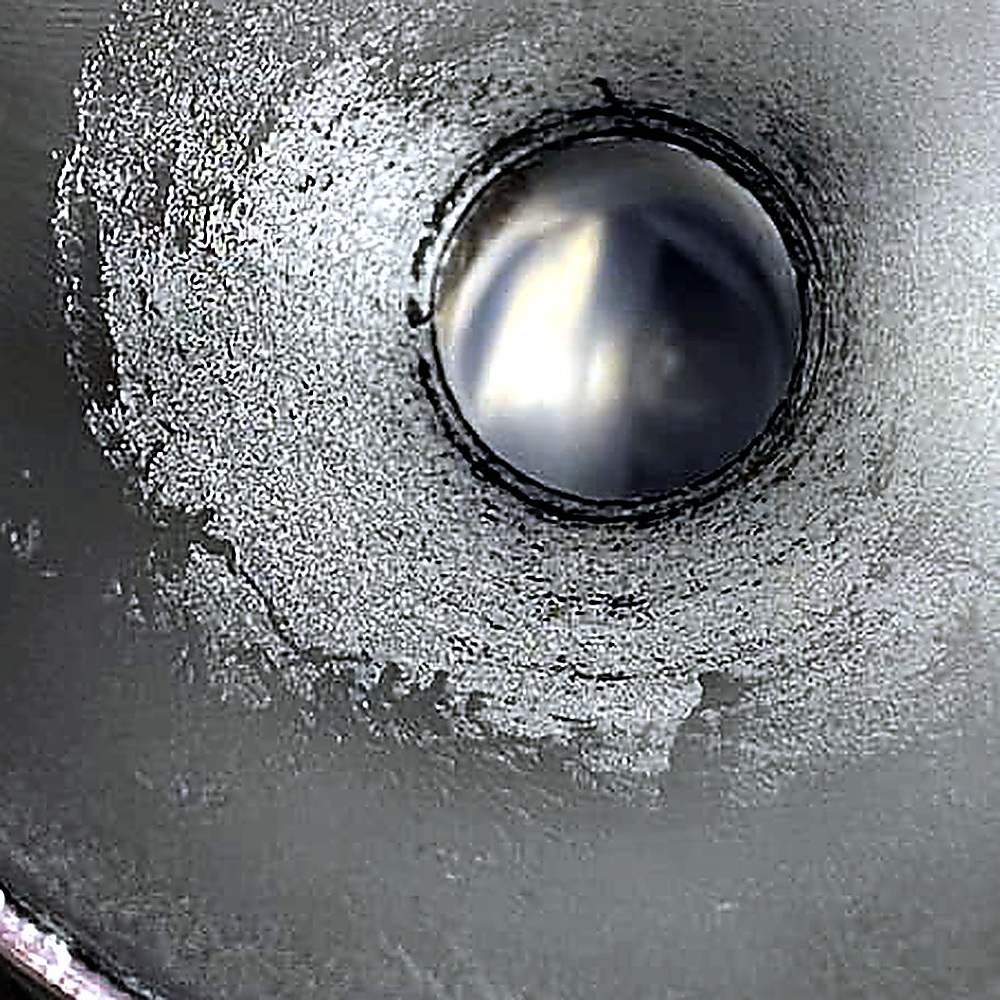

Black streaks often appear after blasting stainless steel surfaces. In some cases, they are only temporary surface dust or discoloration. In others, they may indicate iron contamination or process issues that reduce the corrosion resistance of stainless steel.
For contractors and fabricators, these streaks can create costly problems:
●Failed client inspections: Stainless steel projects usually require a clean, uniform surface finish.
●Hidden corrosion risk: Iron contamination can lead to rust spots within days or weeks, even on 304 and 316 stainless steel.
●Coating adhesion issues: Contaminated surfaces may prevent proper bonding of paints, powder coatings, or passivation treatments.
●Rework costs: Removing embedded contamination may require re-blasting or chemical passivation.
This is one of the most common causes of permanent black streaks on stainless steel.

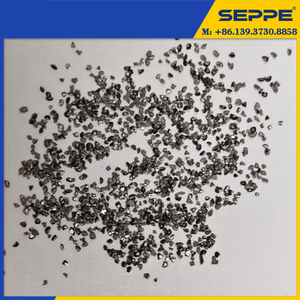

Carbon steel grit and carbon steel shot are suitable for carbon steel blasting, but they can introduce iron contamination on stainless steel surfaces.When these particles hit stainless steel at high speed, tiny iron fragments can become embedded in the surface. Even microscopic iron particles may be enough to cause rust spots later.
Typical signs include:
●Irregular black or gray streaks following the blast direction
●Dark spots that cannot be fully wiped away with a dry cloth
●Rust spots appearing within 24-72 hours after exposure to moisture
Stainless steel resists corrosion because of a thin chromium oxide layer on its surface. Embedded iron can disrupt this protective layer and increase the risk of localized corrosion.
Cross-contamination is easy to overlook. Even if you switch to a non-ferrous abrasive for stainless steel, your blasting system may still contain steel grit, steel shot, or iron dust from previous carbon steel jobs.
Contamination can remain in:
●The bottom of the blast pot
●Hoses and pipe bends
●Dust collector filters and hoppers
●Media recovery systems and separators
Even a small amount of residual steel abrasive can contaminate clean blasting media and create black streaks across the surface.
Not all non-ferrous abrasives are equally clean. Low-quality or contaminated media can still cause black streaks, even if they are not steel abrasives.
Common contamination sources include:
●High iron impurities in raw material
●Cross-contamination during production
●Recycled abrasive mixed with iron particles
●Improper storage near steel fabrication areas

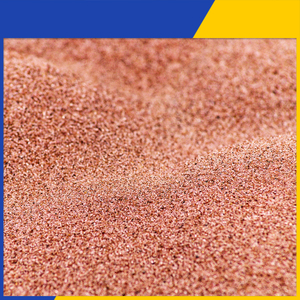

Using a low-free-iron abrasive such as blasting garnet can help reduce contamination risk on stainless steel surfaces. Premium garnet sand is often preferred because it offers stable particle size, low dust, and low free iron content.
Not all black streaks are caused by contamination. Sometimes the problem comes from blasting parameters.
Black discoloration may occur when operators:
●Use excessive blasting pressure
●Hold the nozzle too close to the surface
●Stay too long in one area
●Create an overly rough surface profile that traps dust
This type of discoloration is usually more uniform across the surface, rather than appearing as clear streaks in the blast pattern.
Use this quick table before starting rework:
| Symptom | Most Likely Cause |
| Black streaks appear in certain areas and follow the blast pattern | Equipment cross-contamination |
| Rust spots appear within 1-3 days after blasting | Iron contamination |
| Entire surface looks darker than expected | Excessive pressure or improper technique |
| Problem starts after switching to a new abrasive batch | Low-quality or contaminated abrasive |
| Black material can be picked up with a magnet | Iron contamination |
| Black material wipes off easily with a damp cloth | Surface dust or light oxidation |
The most reliable solution is to use separate blast pots, hoses, and recovery systems for carbon steel and stainless steel jobs.
If dedicated equipment is not available:
●Clean the entire blasting system before switching to stainless steel
●Run clean garnet sand through the system to flush out residual steel particles
●Replace or clean dust collector filters before the stainless steel job
Avoid carbon steel grit and carbon steel shot on stainless steel surfaces where iron contamination must be avoided.Even a small amount of embedded iron may create rust spots later. Use non-ferrous abrasives such as garnet, aluminum oxide, or glass beads.
Before blasting stainless steel, check whether the abrasive is suitable for sensitive metal surfaces.
Good practice includes:
●Requesting a certificate of analysis from the supplier
●Choosing low-free-iron abrasive
●Avoiding recycled media for critical stainless steel projects
●Storing abrasive in sealed packaging away from steel dust
Improper blasting technique can also create discoloration or surface damage.
For most stainless steel applications:
●Use moderate blasting pressure
●Keep a consistent nozzle distance
●Maintain steady movement speed
●Test on a small sample before full production
For critical stainless steel projects, passivation with citric acid or nitric acid can help remove remaining surface contamination and restore corrosion resistance.
The right abrasive depends on the base material, required surface profile, coating system, and contamination tolerance.

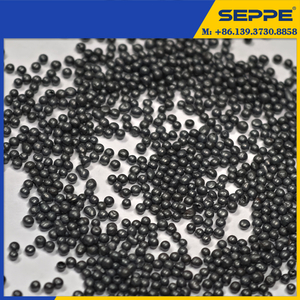

For carbon steel blasting, steel shot and steel grit are commonly used because they are efficient and recyclable. However, they should be avoided on stainless steel when iron contamination is a concern.
For stainless steel and other sensitive surfaces, contractors usually choose low-free-iron, non-ferrous abrasives such as garnet sand, glass beads, brown fused alumina, or white fused alumina.
SEPPE Technologies supplies a range of blasting abrasives for industrial surface preparation. To compare different abrasive options, read our guide: How to Choose Between Glass Beads, Garnet, Aluminum Oxide and Steel Grit.
For stainless steel projects where black streaks and iron contamination are a concern, low-free-iron non-ferrous abrasives are usually the safer choice.
For product details, contact info@seppe.cn.
