1#-4# / 0.25-4.0 mm
7018200090
SEPPE Crystal Glass Filter Media is a high-efficiency recycled glass filtration media for swimming pool filtration, industrial water treatment, cooling tower side-stream filtration and wastewater tertiary treatment. It is designed as a cleaner and longer-life alternative to quartz sand, helping improve filtration precision, reduce backwash water consumption and support stable operation in existing sand filter systems.
Product: Crystal glass filter media for pool filtration, industrial water treatment and sand filter replacement
Model: 1#-4# / 0.25-4.0 mm
Other Names: Glass Filter Media, Crystal Glass Filter Media, Recycled Glass Filter Media, Glass Sand Filter Media
Material Type: Soda-lime glass spherical media

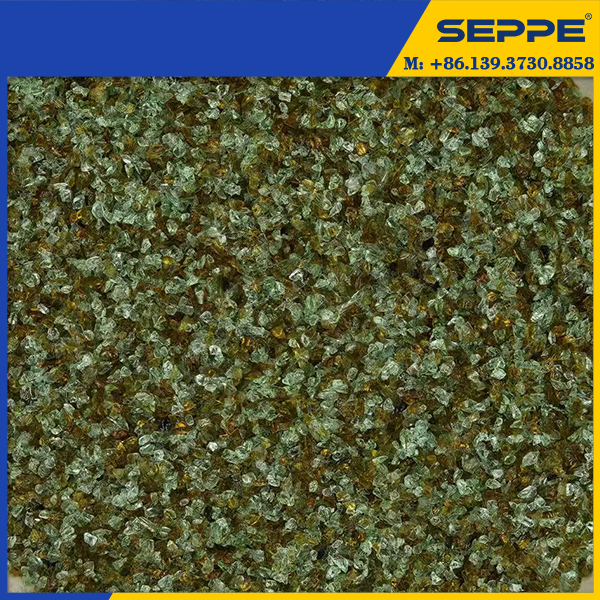

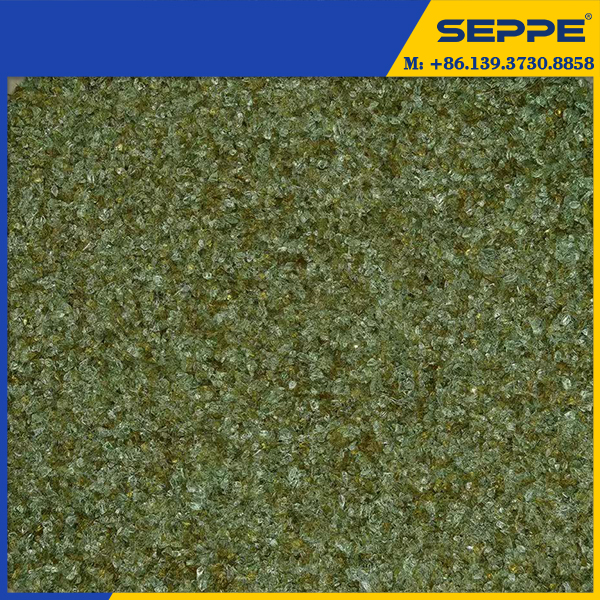

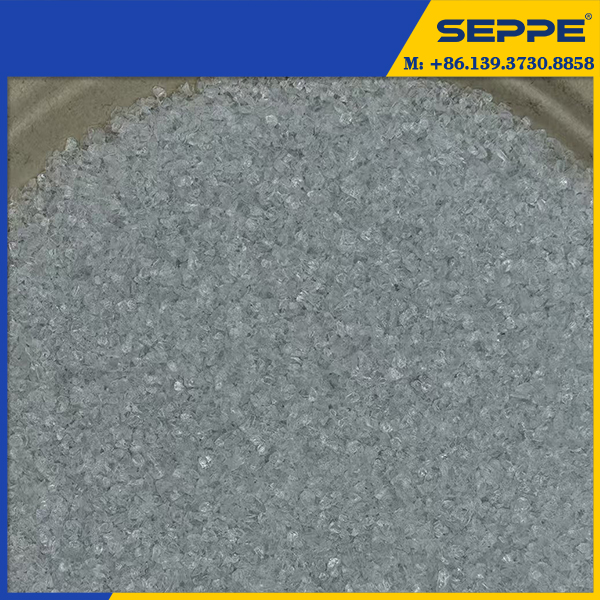

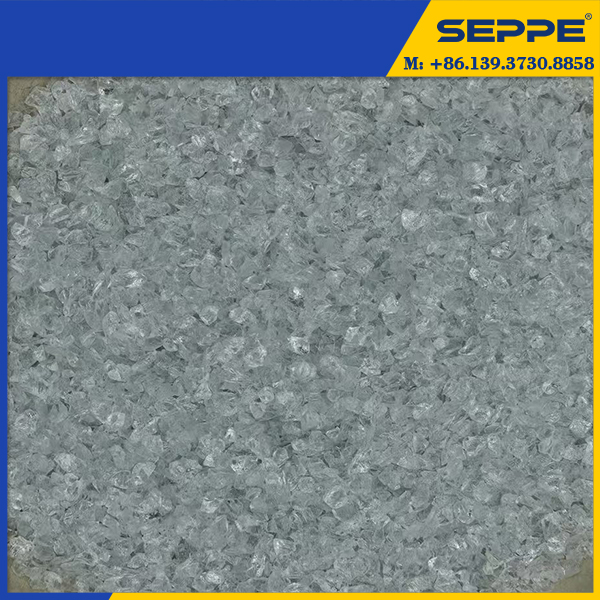

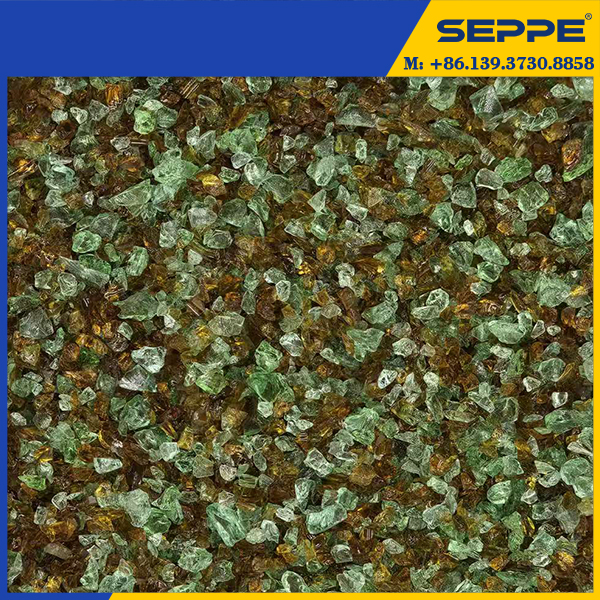

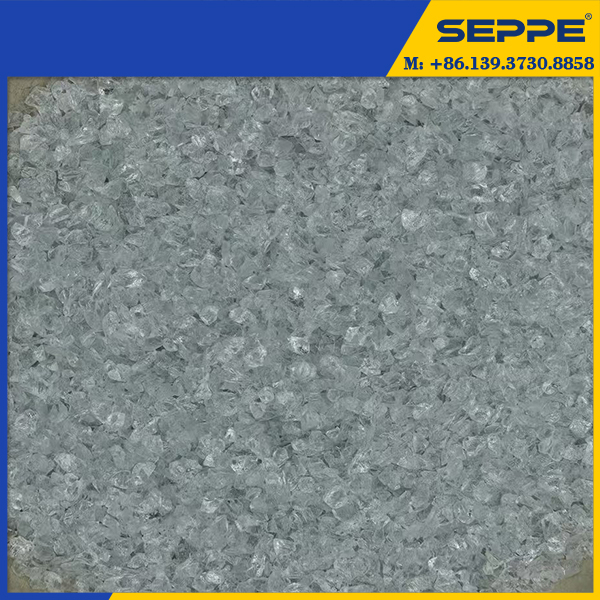

• Crystal glass filter media is produced from selected green or brown glass, then processed, activated and classified into controlled granular grades for water filtration systems.
• The engineered glass surface provides a large active filtration area and helps capture fine suspended solids, organic matter and selected charged particles such as heavy metal ions.

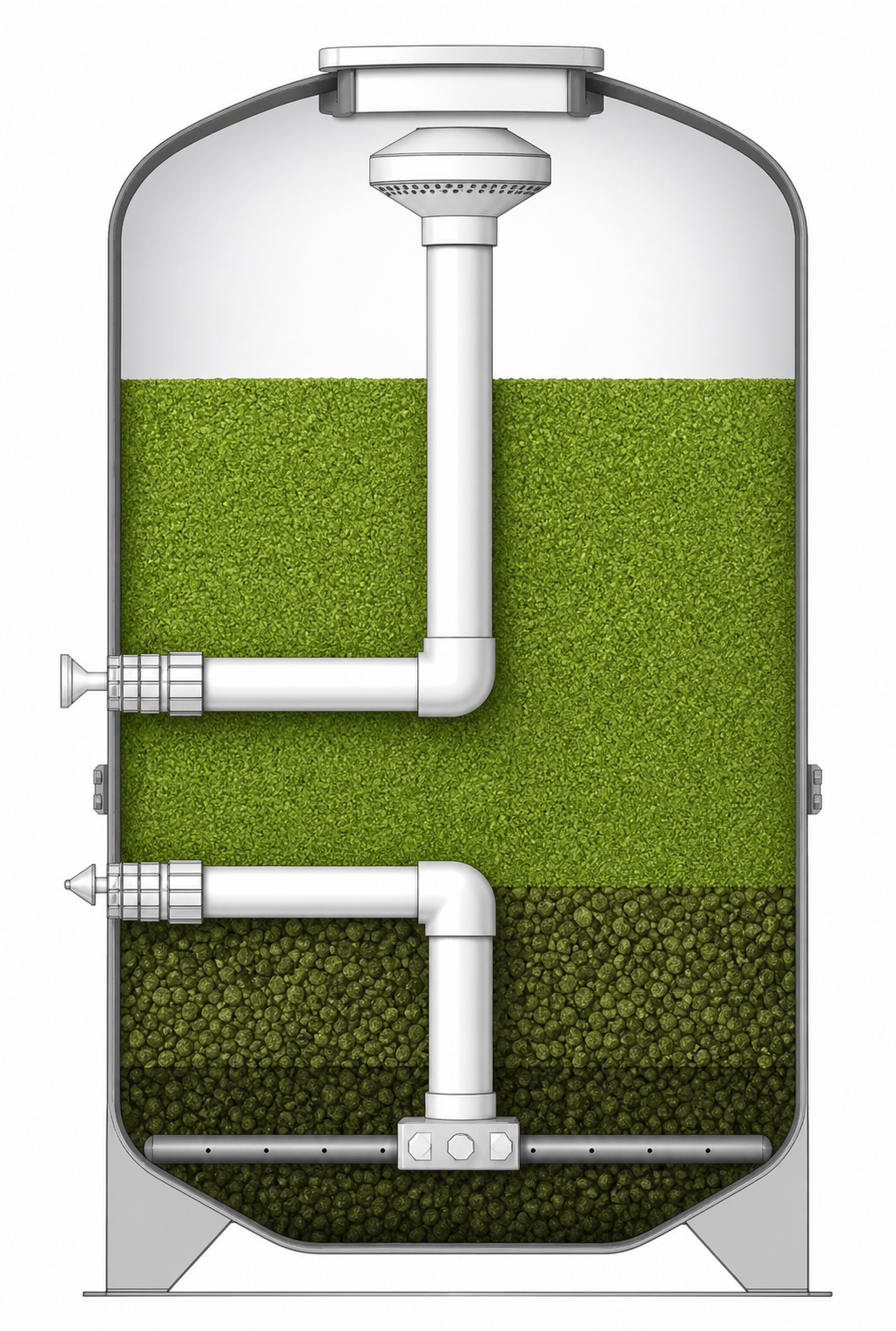

• It can replace quartz sand in many existing sand filters without major equipment modification, making it suitable for pool filtration, industrial circulating water, cooling tower side-stream filtration and wastewater polishing.
• High Filtration Efficiency: Fine particle interception can exceed traditional quartz sand in suitable filter designs, supporting clearer water output.
• Quartz Sand Replacement: Can be used to replace quartz sand in many sand filter vessels without rebuilding the existing filtration system.
• Reduced Backwash Water: Open particle structure and lower clogging tendency can reduce backwash water consumption and improve operating efficiency.
• Anti-biofouling Surface: The glass surface is less likely to provide growth conditions for biofilm compared with some traditional filter media.
• Long Service Life: Hard glass particles provide stable mechanical performance and a long service life under normal filtration and backwash conditions.
| Filter Media | Minimum Particle Size at 90% Removal |
|---|---|
| No. 0 Glass Filter Media | 1 μm |
| No. 1 Glass Filter Media | 4 μm |
| New Quartz Sand | 10.5 μm |
| EGFM Filter Media | 22 μm |
| Garo Filter Media | 30 μm |
| Astral Filter Media | 39 μm |
| Biomar Filter Media | 40 μm |
Reference condition: filtration velocity 20 m/h. Smaller value means finer particle interception under the same 90% removal rate. No. 0 grade removes more than 90% of 1 μm particles; No. 1 grade removes more than 90% of 4 μm particles; quartz sand comparison value is 10.5 μm.
| Application Need | Recommended Grade | Typical Result |
|---|---|---|
| Pool filtration and sand filter replacement | Fine to medium filter media grades | Clearer water, lower clogging risk and practical backwash performance |
| Industrial circulating water | Project-matched multi-layer grades | Stable filtration with balanced flow rate and pressure drop |

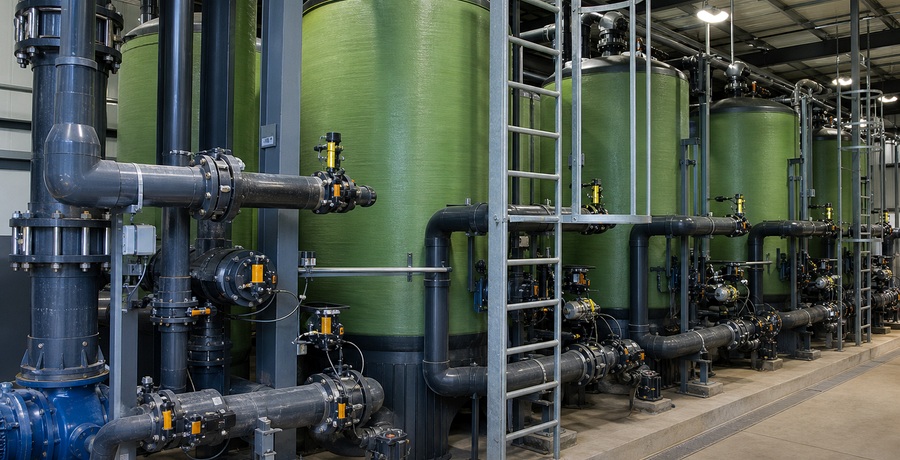

| Wastewater tertiary polishing | Fine filtration grade by target turbidity | Improved suspended solids removal before discharge or reuse |

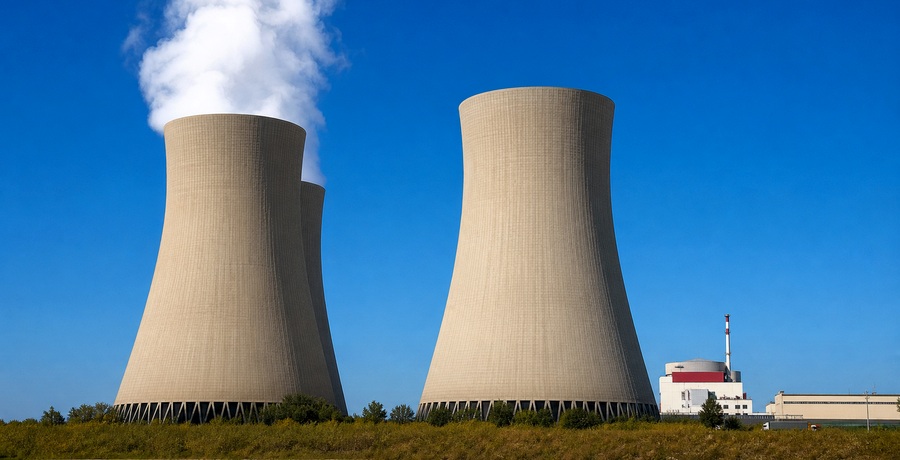

| Cooling tower side-stream filtration | System-matched filter media grade | Reduced suspended solids and better circulating water control |
| Item | Typical Value | Notes |
|---|---|---|
| Available Grades | 1# / 2# / 3# / 4# | Fine, medium and coarse grades selected by filter design |
| Particle Size Range | Approx. 0.25-4.0 mm | Grade selection according to filtration target and backwash condition |
| Hardness | >7 Mohs typical filter media reference | Typical product specification reference |
| Colored Glass Ratio | >98% | Green / brown recycled glass content reference |
| Specific Gravity | Approx. 2.4 kg/L | Particle specific gravity reference |
| Bulk Density | Approx. 1.22-1.28 kg/L | Varies by grade |
| Attrition Rate | <1% | Reference condition: 50% bed expansion, 100 hours continuous backwash |
| Grade | Particle Size | Undersize | Oversize | Effective Size | Hardness | Bulk Density |
|---|---|---|---|---|---|---|
| 1# | 0.25-0.5 mm | <5% | <5% | 0.30 mm | >7 Mohs | 1.28 kg/L |
| 2# | 0.4-1.0 mm | <5% | <10% | 0.45 mm | >7 Mohs | 1.25 kg/L |
| 3# | 1.0-2.0 mm | <10% | <10% | 1.1 mm | >7 Mohs | 1.23 kg/L |
| 4# | 2.0-4.0 mm | <10% | <10% | 2.1 mm | >7 Mohs | 1.22 kg/L |
| SiO2 | > 67% |
| CaO | > 8.0% |
| MgO | > 2.5% |
| Na2O | < 14% |
| Al2O3 | 0.5-2.0% |
| Fe2O3 | Approx. 0.15% |
| Others | Approx. 2.0% |
• Selected glass raw material - melting - bead forming - cooling - cleaning - screening and classification - roundness and appearance review - packaging.
• The process is designed to control particle size distribution, roundness, bubble content, impurities and surface smoothness for stable product performance.
• Particle size distribution is checked by sieve analysis according to ordered mesh grade.
• Roundness, broken particles, bubbles, visual cleanliness and surface smoothness are reviewed by batch.
• Physical properties such as bulk density, hardness reference and crush rate can be checked according to purchase specification.
• Batch COA, particle size report, retained sample support and third-party inspection can be arranged according to order requirements.
• Common packaging includes 25 kg bags, 1000 kg jumbo bags, palletized bags and customized export packaging. Bag marks and pallet protection can be arranged according to purchase requirements.
• Store glass beads in dry conditions and protect bags from moisture, contamination and package damage before use.
• Loading photos, batch labels and inspection records are available to support shipment traceability.
• It is used for swimming pool filtration, industrial water filtration, cooling tower side-stream filtration, wastewater tertiary treatment and quartz sand replacement.
• Yes. In many sand filter systems, crystal glass filter media can replace quartz sand without major equipment modification. Final selection should follow filter design and water quality requirements.
• No. The suitable particle size should be selected according to filtration flow rate, target particle removal, filter vessel design and backwash conditions.
• Yes. Fine, medium and coarse filtration grades can be discussed according to pool, industrial water or wastewater treatment requirements.
