Introduction
Brown aluminum oxide, otherwise known as Brown Fused Alumina or BFA, is produced through an electric arc furnace process. Brown fused aluminum oxide is both a hard (Mohs hardness 9) and tough material with high strength, making it an excellent abrasive grain raw material for applications such as blast media, sandpaper, grinding wheels and abrasive discs, rolls, belts and pads. Its thermal properties make it an excellent raw material for refractory applications, as well.

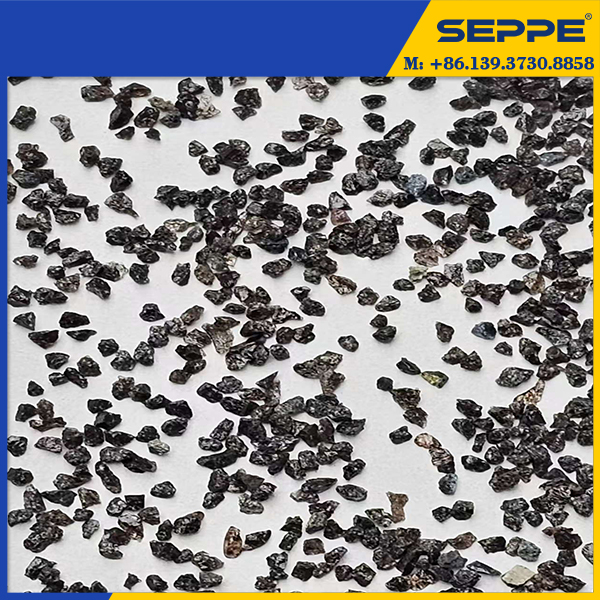

Sample Show
Physical Index
| Items | Index |
| Colour | Dark Brown(calcined dark blue) |
| Hardness | 9.0 |
| Melting Point | 2250℃ |
| True Density | 3.9g/cm3 |
Main Applications
*Abrasives Materials

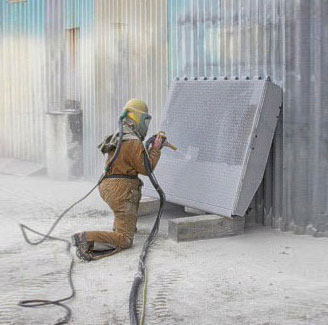

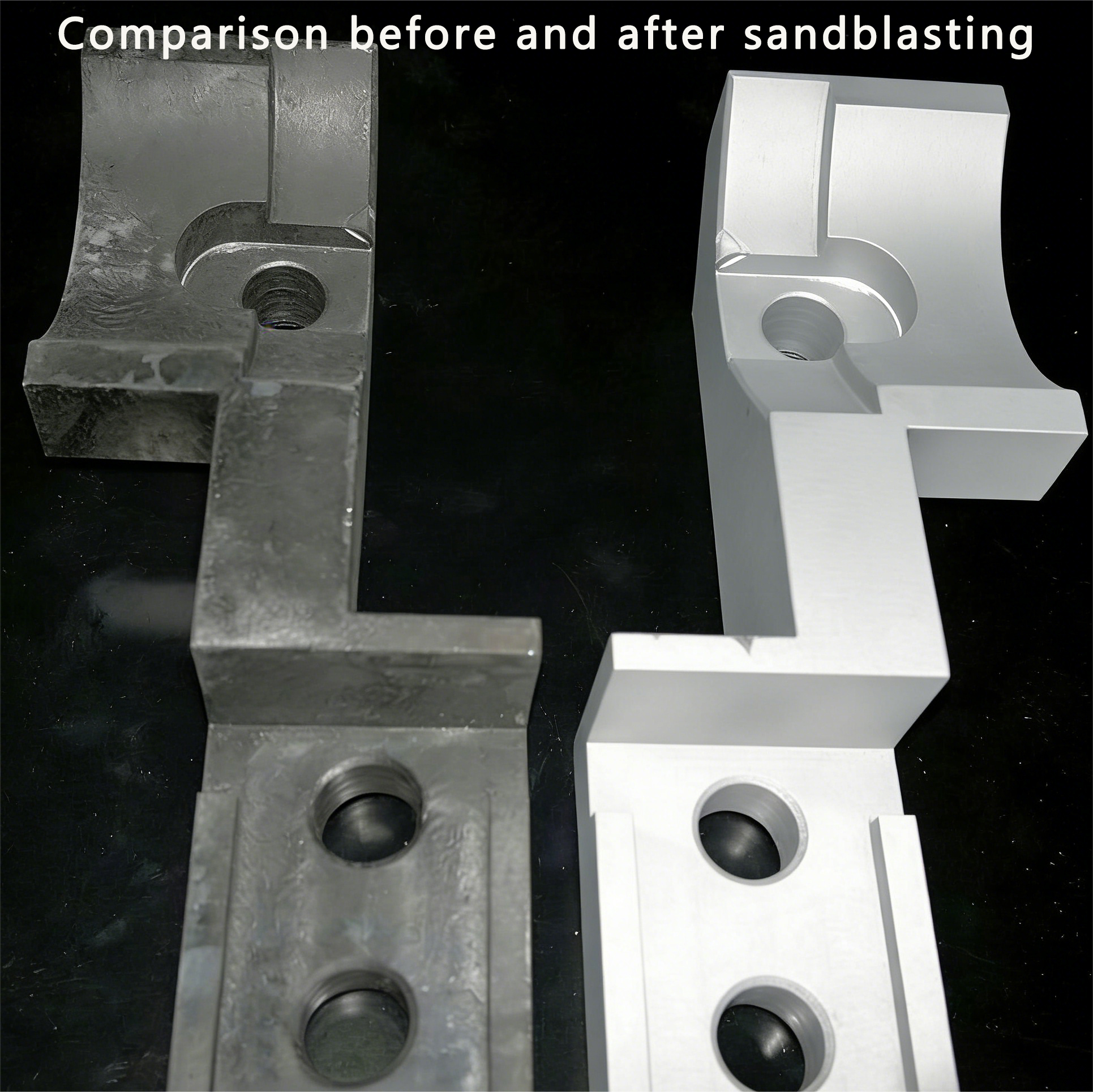

Within the abrasive industry Brown Fused Alumina is a valuable addition to products like abrasive papers and in shot blasting applications.
*Refractory & Foundry
Brown Fused Alumina is utilised within the refractory industry for the manufacture of high alumina fired and monolithic refractory products like bricks, pre-cast shapes and also foundry applications, where the addition of Brown Fused Alumina helps to obtain a smooth surface finish in investment castings.
Sizes Available: 0-1mm,1-3mm,3-5mm,5-8mm,8-12mm,100mesh,200mesh,325mesh etc.
Specifications
Purpose | Specification | Chemical composition(%) | Magnetic material content(%) | ||||
Al2O3 | Fe2O3 | SiO2 | TiO2 | ||||
Abrasive Grade | F | 4#-80# | 95.0 Min | 0.3 Max | 1.5 Max | 3.0 Max | 0.05 Max |
90#-150# | 94.0 Min | 0.03 Max | |||||
180#-240# | 93.0 Min | 0.02 Max | |||||
P | 8#-80# | 95.0Min | 0.2Max | 1.2Max | 3.0Max | 0.05Max | |
100#-150# | 94.0Min | 0.03Max | |||||
180#-220# | 93.0Min | 0.3Max | 1.5Max | 3.5Max | 0.02Max | ||
W | F230-F1200 | 92.5Min | 0.5Max | 1.8Max | 4.0Max | — | |

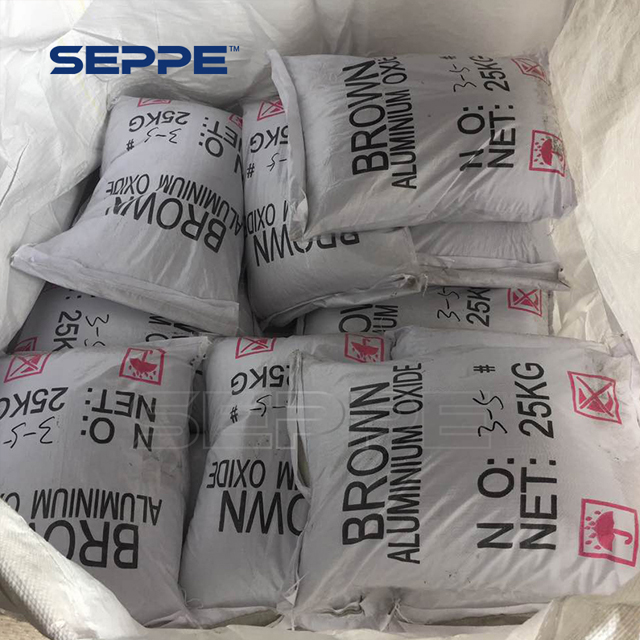

Packing & Delivery
Click here for more information
BROWN FUSED ALUMINUM OXIDE COA.pdf
