20-100 Mesh
SEPPE CENOSPHERE
2621900090
SEPPE supplies cenospheres primarily as dry, classified powders, with two core application-oriented grades: oilfield cementing grade and coating grade. Both use lightweight hollow aluminosilicate microspheres, while particle-size control, density requirements, chemical limits, and quality testing are adjusted for each downstream application.
▸ Cenospheres are naturally formed hollow ceramic microspheres recovered and purified from fly ash. Each sphere has a rigid aluminosilicate shell and a sealed hollow interior, creating low density, thermal insulation, and mineral stability in one particle.
▸ SEPPE’s core commercial supply forms are dry oilfield cementing grade and dry coating grade cenospheres. Other particle-size cuts and application-specific controls can be confirmed by purchase specification.
▸ This page provides an integrated overview of both core grades, including applications, physical properties, quality-control parameters, technical documents, packaging, and related resources.
| Grade / Model | Recommended Application | Key Specification Focus |
|---|---|---|
| General Cenosphere 30-100 Mesh | General lightweight filler, construction, refractory, coatings, industrial blends | Mesh size, loose bulk density, particle density, chemical composition |
| Oilfield Cementing Grade | Oil well cementing and low-density slurry systems | Flotation rate, density, sieve analysis, moisture, compressive strength |
| Coating Grade | Paints, coatings, surface finishing, insulation coatings | D50/D98, pH value, iron content, dispersion, particle density |
| Custom Mesh / Density Grade | Plastics, foundry, refractory, thermal insulation slurry | Target particle size, density range, color, chemistry, application testing |
| General Cenosphere Physical & Chemical Properties | |
| Model | 30-100 Mesh / Custom Mesh |
| Shape | Hollow spherical powder |
| Color | Light grey to white |
| SiO₂ | 50-60% typical |
| Al₂O₃ | 25-40% typical |
| Bulk Density | 0.30-0.45 g/cm³ typical |
| True Density | 0.70-0.90 g/cm³ / grade dependent |
| Particle Size | 30-100 Mesh typical; custom mesh sizes available |
| Mohs Hardness | 5-6 |
SEPPE operates an ISO 9001:2015 certified quality system with one unified workflow and application-specific testing standards. Oilfield cementing and coating grades are controlled against the applicable TDS or agreed purchase specification; batch COA can be provided according to order requirements.
SEPPE supplies dry cenosphere powders for oilfield cementing and coating applications. Product specifications and quality-control parameters are selected according to the intended application.
| Test Parameter | Test Method | Specification | Typical Value |
|---|---|---|---|
| Flotation Rate | Visual Inspection + Water Flotation | ≥95% | 98% |
| Bulk Density (Loose Bulk Density) | ISO 23145-2:2012 Constant-Volume Method | 0.30–0.45 g/cm³ | 0.38 g/cm³ |
| True Density (Particle Density) | ISO 12154:2014 Gas Displacement Pycnometry | 0.75–0.90 g/cm³ | 0.82 g/cm³ |
| Particle Size Distribution | U.S. Sieve Series | 0–500 μm | See sieve table below |
| Moisture Content (Matter Volatile at 105°C) | ISO 787-2:2021 | ≤0.3% | 0.2% |
| Chemical Composition | X-Ray Fluorescence (XRF) | SiO₂: 50–60% | 55% |
| Al₂O₃: 25–40% | 35% | ||
| CaO: 1–1.5% | 1.2% |
| U.S. Sieve | Nominal Aperture | Specification | Typical Value |
|---|---|---|---|
| +30M | 500 μm | NIL | – |
| +60M | 250 μm | 0–20% | 8% |
| +100M | 150 μm | 20–60% | 45% |
| +150M | 106 μm | 50–75% | 67% |
| +240M | 63 μm | 70–95% | 92% |
| −240M | <63 μm | 0–20% | 8% |
| Test Parameter | Test Method | Specification |
|---|---|---|
| Particle Size Distribution | ISO 13320:2020 Laser Diffraction | D50: 45–60 μm D98: 105–140 μm |
| pH Value | ISO 787-9:2019 10% Aqueous Suspension | 7.0 ± 1.0 |
| Iron Content (reported as Fe₂O₃) | X-Ray Fluorescence (XRF) | <6% |
| True Density (Particle Density) | ISO 12154:2014 Gas Displacement Pycnometry | 0.70–0.90 g/cm³ |
| Moisture Content (Matter Volatile at 105°C) | ISO 787-2:2021 | ≤0.3% |
| Chemical Composition | X-Ray Fluorescence (XRF) | SiO₂: 55–65% Al₂O₃: 27–33% |
| Dispersion Test | High-Speed Mixing + Hegman Gauge (customer-agreed coating system) | According to the selected coating system and customer-approved test plan |
▸ SEPPE laboratory testing covers particle size, XRF chemistry, loose bulk density, particle density, matter volatile at 105°C, flotation rate, and application-oriented performance checks.
▸ Each batch receives a unique ID and retained sample. SGS, BV, or other third-party inspection can be arranged before shipment.

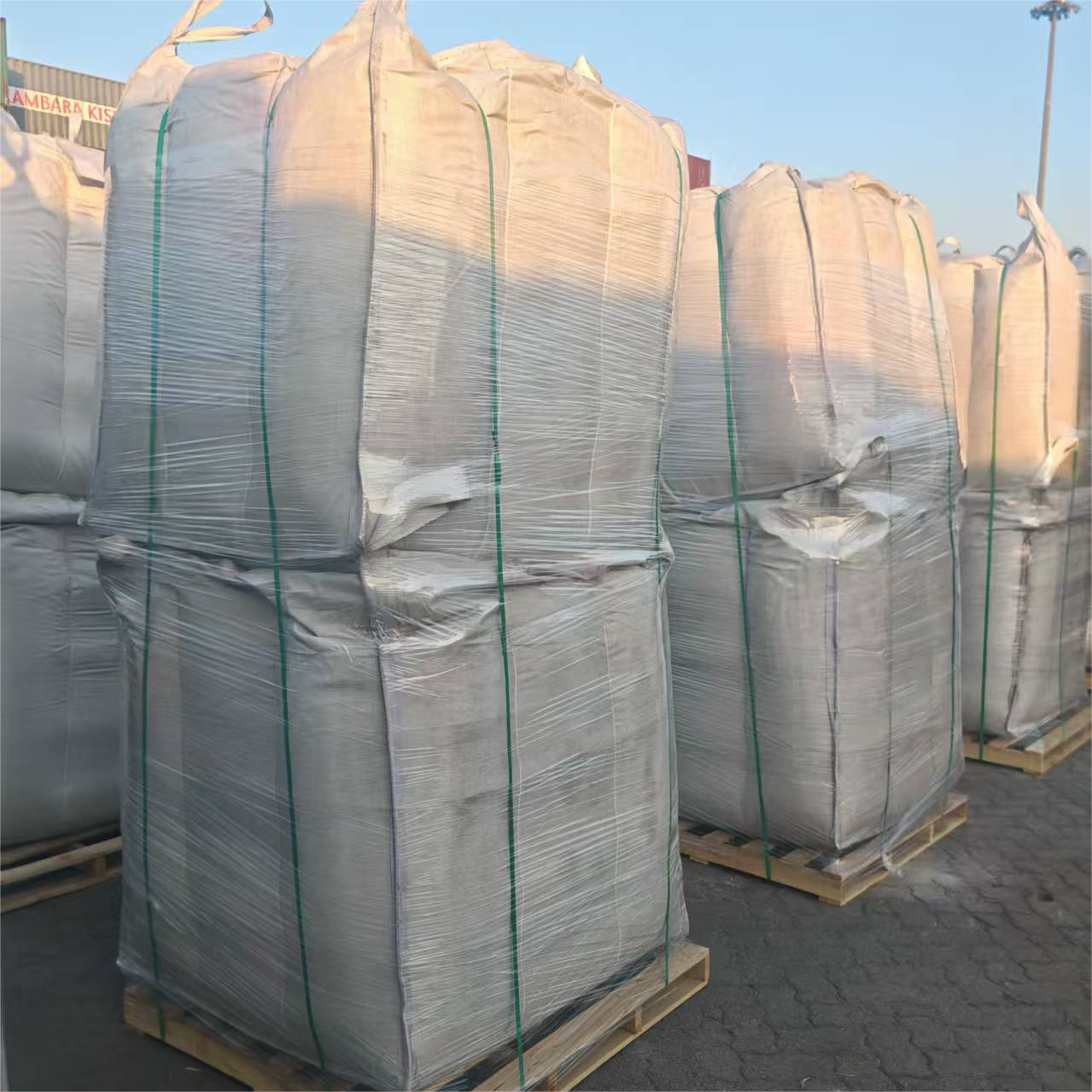

▸ 600 kg jumbo bags — approximately 40 bags per 40' High Cube FCL (total ~24 MT)
▸ 40' High Cube container recommended due to low bulk density (0.30-0.45 g/cm³)
▸ Custom packaging available upon request
▸ 10-year shelf life when stored in dry conditions
▸ Reliable container shipment to all major ports worldwide
▸ For general lightweight filling, 30-100 Mesh cenosphere is commonly selected according to the required particle size and density. For oilfield cementing, coatings, and insulation systems, SEPPE can recommend application-specific grades based on slurry density, pH, iron content, flotation rate, and dispersion requirements.
▸ Yes. SEPPE can recommend mesh size, true density, flotation rate, pH, iron content, and chemical targets according to your application.
▸ Yes. Every shipment can include batch COA with test results, production date, batch number, and testing methods.
▸ Yes. SGS, BV, or other independent third-party inspection can be arranged before shipment.
▸ Yes. Samples, TDS, COA, and grade selection guidance are available for coating, oilfield, construction, refractory, plastic, and composite trials.
▸ 0.8g/cm3 Cenosphere for Petroleum Cementing
Contact SEPPE to discuss mesh size, density target, application-specific testing, OEM packaging, or to schedule a factory audit.
