Hollow Cenosphere for Lightweight Material

Cenosphere is a lightweight, inert, hollow sphere filled with inert air or gas, typically produced as a byproduct of coal combustion at thermal power plants.
Availability:
Quantity:
Inquire

  • 30-100Mesh

  • SEPPE CENOSPHERE

  • 2621900090

Hollow Cenosphere for Lightweight Material

30-100 mesh hollow cenosphere for lightweight material applications. The low-density aluminosilicate spheres provide volume filling, insulation, and weight reduction across construction, coatings, composites, and refractory blends.

★ Model 30-100Mesh
◆ Lightweight Material Grade
★ Hollow Spherical Powder
◆ Low Density
★ Thermal Insulation
◆ Multi-Industry Filler
ISO 9001:2015 Certified · Model 30-100Mesh · COA Available · OEM Packaging

What Is Hollow Cenosphere for Lightweight Material?

▸ This product is a versatile hollow aluminosilicate cenosphere for lightweight filling and density reduction.

▸ The spherical ceramic powder combines low density, heat stability, and chemical inertness across multiple industries.

▸ Different mesh and density grades can be selected according to the target application.

Key Performance Characteristics

▸ Low Density: Reduces product weight while maintaining filling volume.

▸ Hollow Microsphere Structure: Provides lightweight and thermal insulation benefits.

▸ Spherical Morphology: Supports flow, packing, and dispersion in many systems.

▸ Ceramic Stability: Aluminosilicate chemistry provides heat and chemical resistance.

▸ Flexible Application: Suitable for coatings, construction, refractory, composites, and oilfield trial blends.

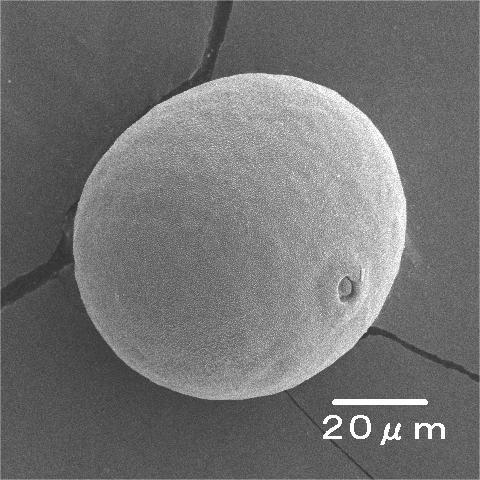

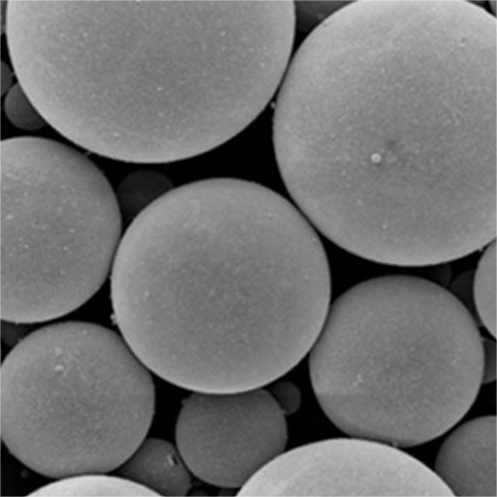

Hollow Microsphere Structure   Cenosphere SEM Structure

Typical Applications

▸ Lightweight construction products

▸ Coatings and fillers

▸ Composite material filling

▸ Refractory lightweight blends

▸ General industrial weight reduction

Chemical Composition & Physical Properties

Chemical Analysis (Typical)
SiO₂ 50-60%
Al₂O₃ 25-40%
Fe₂O₃ 1-6% / low iron grade available
CaO 1-1.5%
Physical Properties
Model 30-100Mesh
Shape Hollow spherical powder
Color Light grey to white
Bulk Density 0.30-0.45 g/cm³ typical
True Density 0.70-0.90 g/cm³ / grade dependent
Particle Size 30-100Mesh
Mohs Hardness 5-6

Technical Documents

▸ CENOSPHERE TDS (General) — for initial product introduction, customs declaration, and bidding documents.

▸ General Cenosphere TDS — typical chemistry, density, particle size, and packaging information.

Packaging & Delivery

▸ 600 kg jumbo bags — approximately 20 bags per 40' High Cube FCL (total ~24 MT)

▸ 40' High Cube container recommended due to low bulk density (0.30-0.45 g/cm³)

▸ Custom packaging available upon request

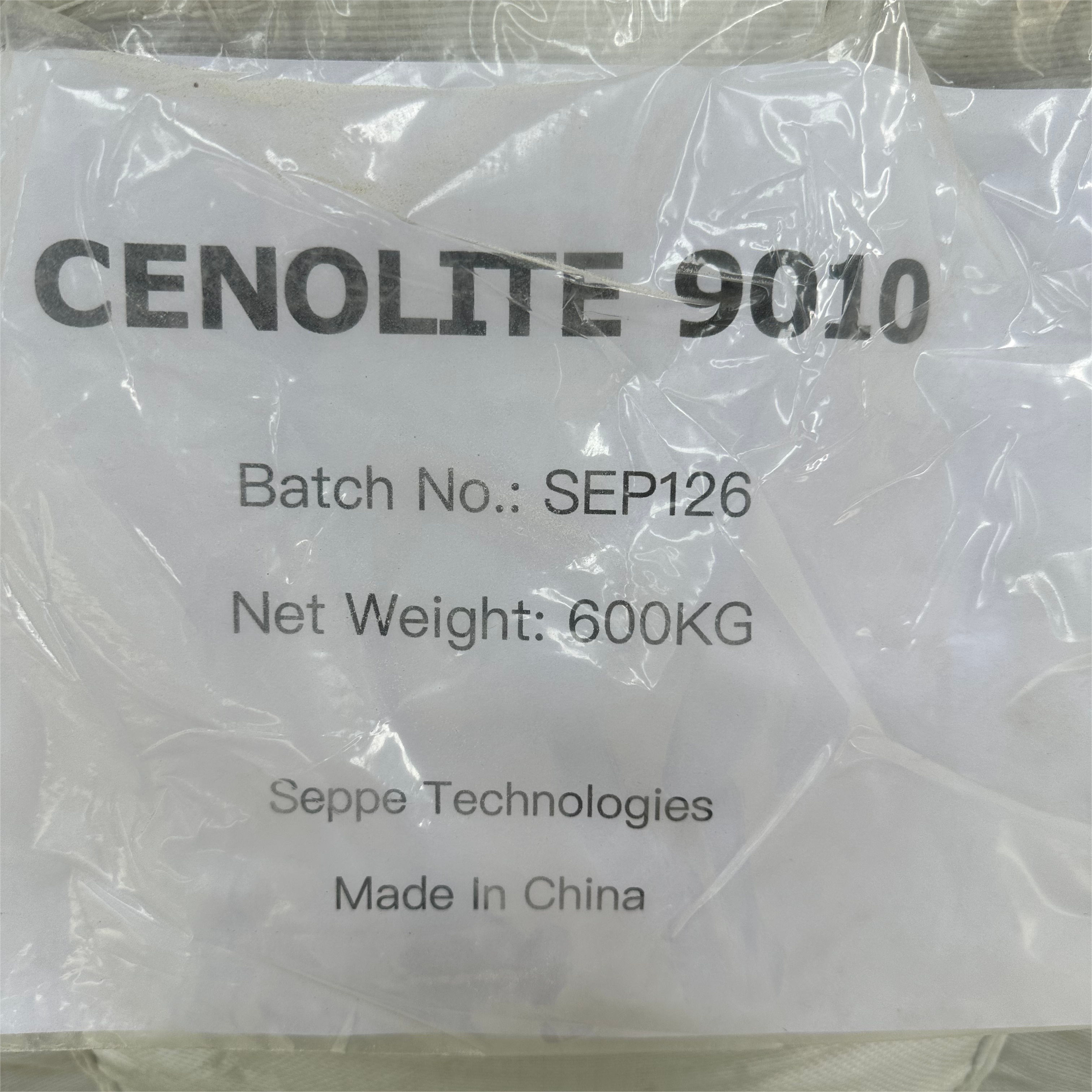

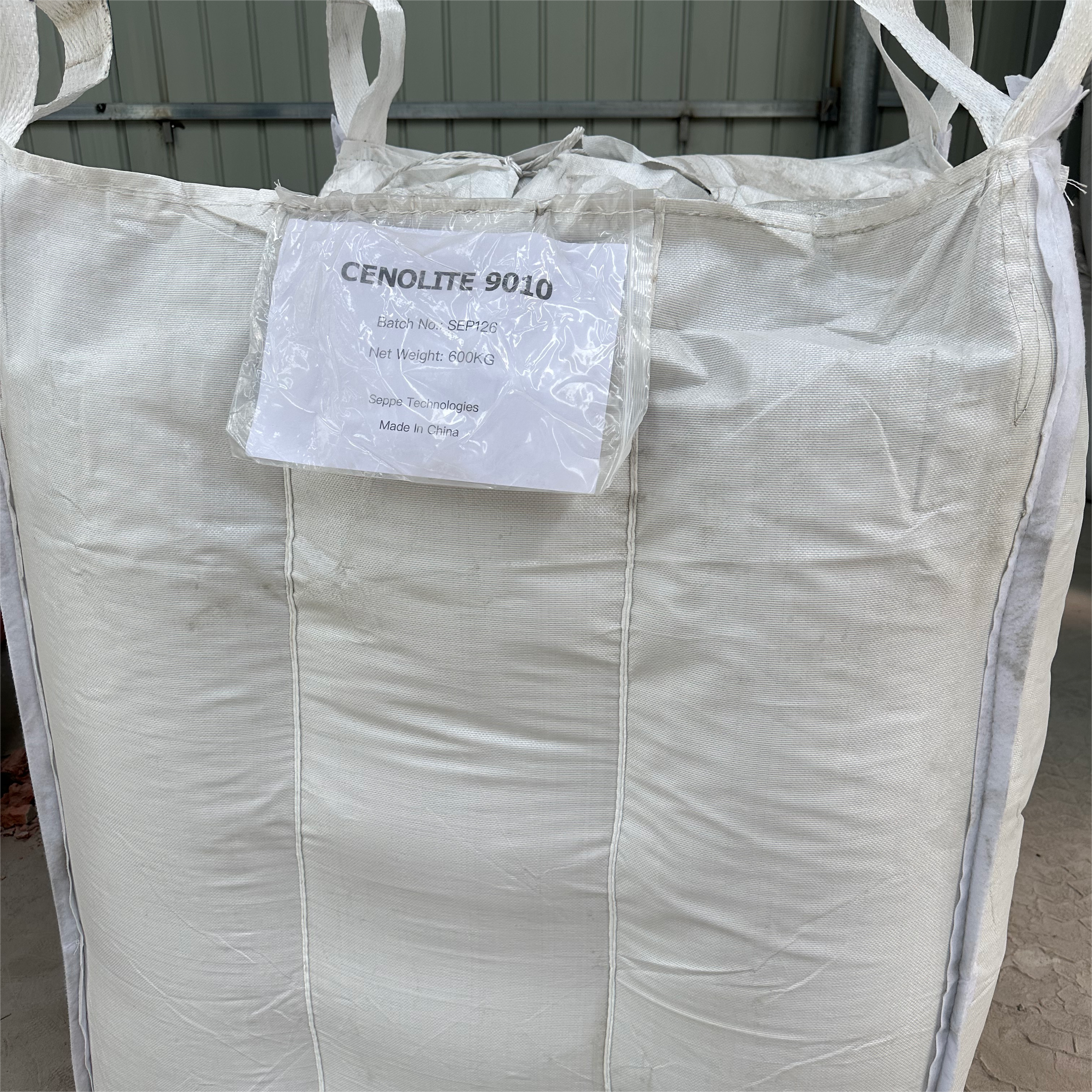

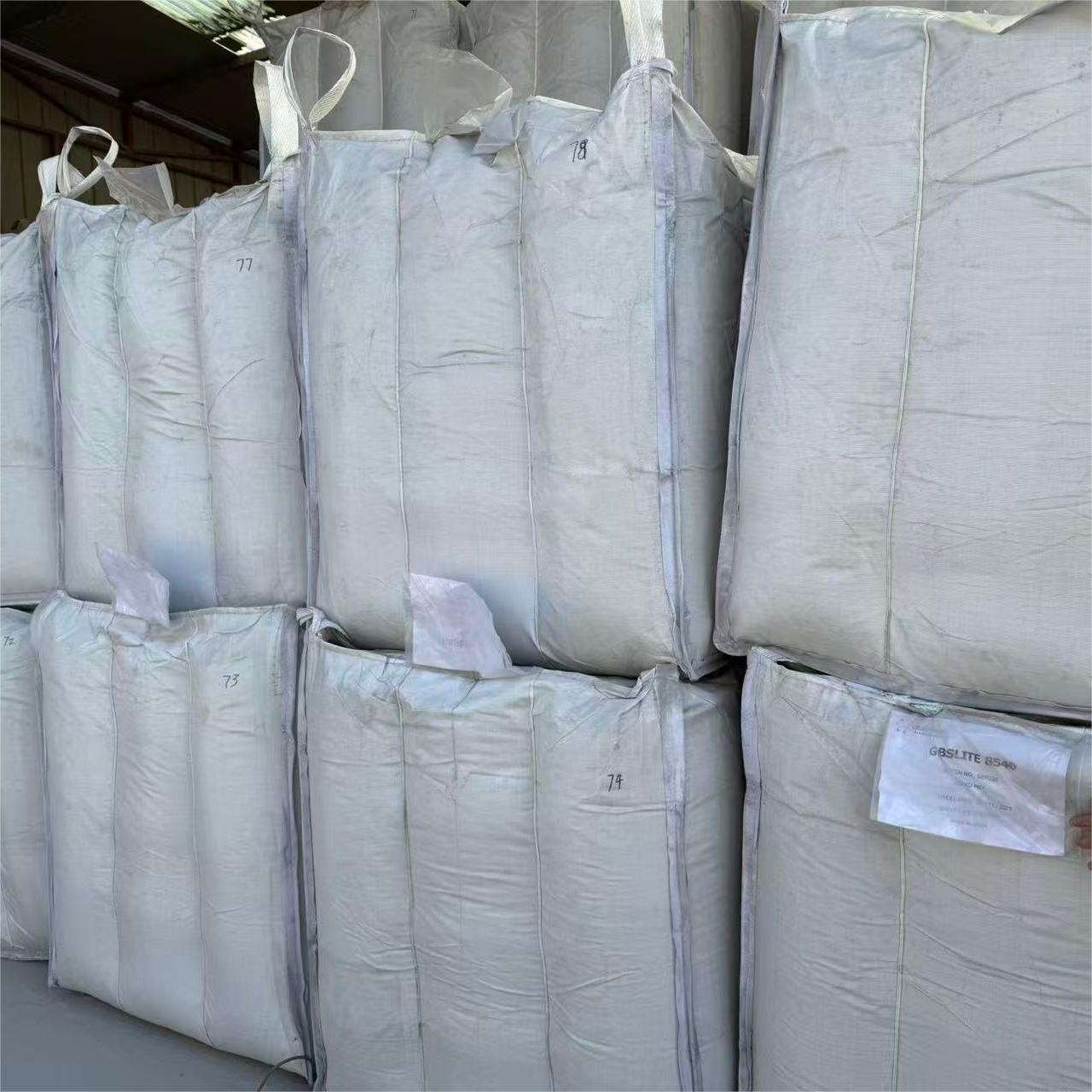

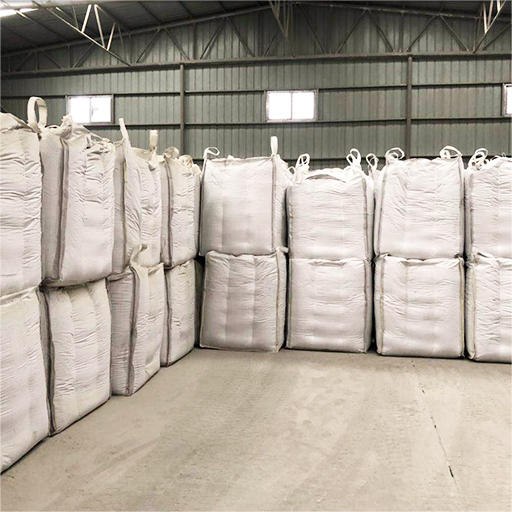

cenosphere jumbo bag cenosphere jumbo bag 600 kg cenosphere Storage cenosphere in container

▸ 10-year shelf life when stored in dry conditions

▸ Reliable container shipment to all major ports worldwide

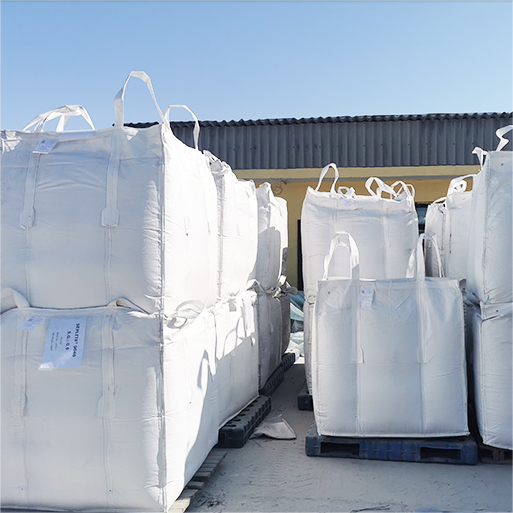

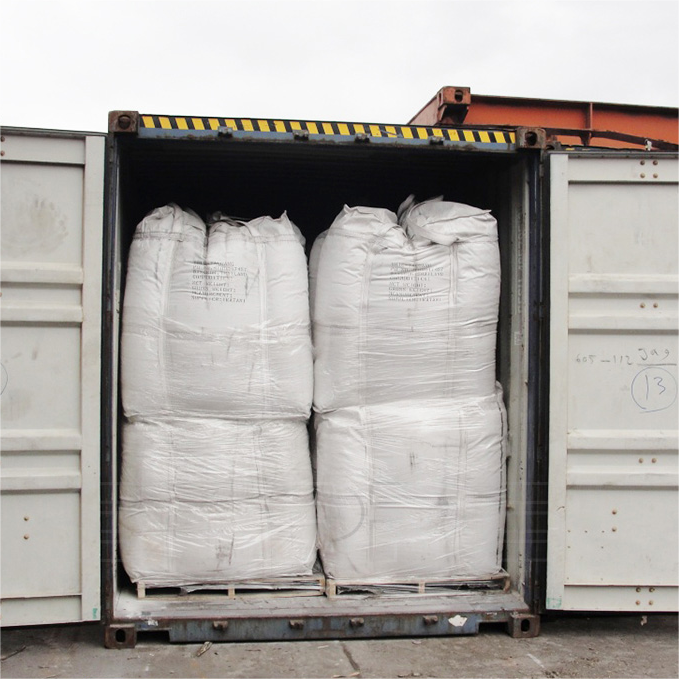

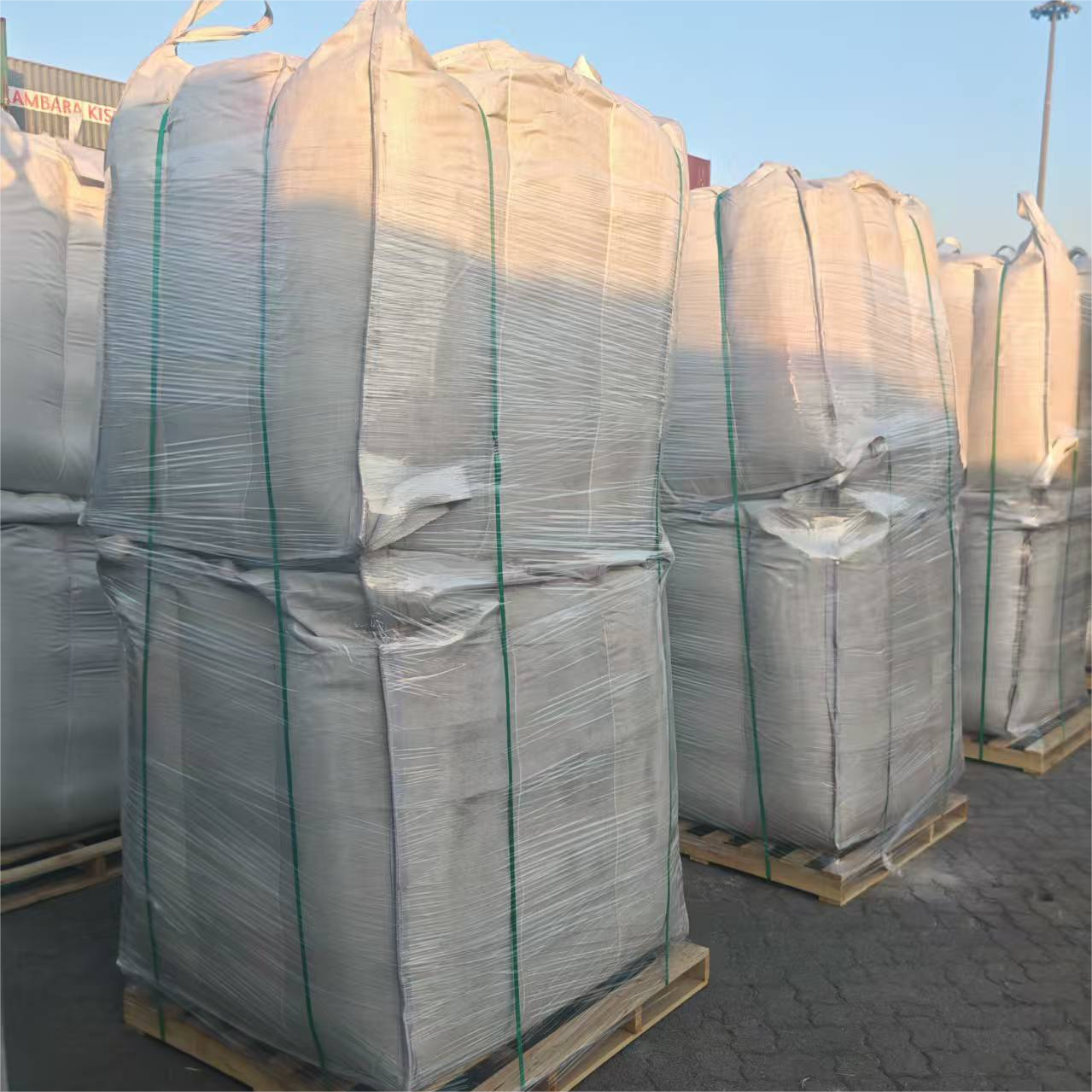

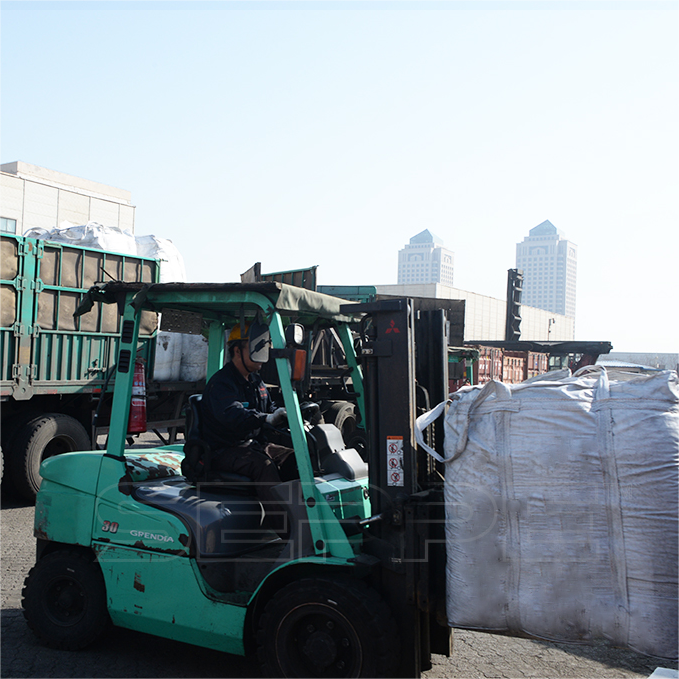

cenosphere packing process reliable container shipment efficient logistics 40' High Cube FCL

FAQ

❓ What is the main advantage of hollow cenospheres?

▸ Hollow cenospheres provide low density, thermal insulation, and ceramic stability in one lightweight mineral filler.

❓ Which application is this grade suitable for?

▸ Model 30-100Mesh can be evaluated in coatings, construction materials, refractory products, composites, and general lightweight filling systems.

❓ Can particle size or density be customized?

▸ Yes. SEPPE can recommend a suitable grade based on target density, mesh size, and formulation system.

❓ Is it chemically stable?

▸ Yes. Aluminosilicate cenospheres are inert mineral fillers suitable for many industrial systems after compatibility testing.

❓ Can I get samples?

▸ Yes. Samples, TDS, COA, and packing information are available upon request.

Need a Quote or Technical Support?

Contact SEPPE for product specifications, samples, OEM packaging, and bulk pricing.

Request a Quote

Coating Grade Cenosphere Quality Control System

SEPPE operates a fully integrated ISO 9001:2015 certified quality management system for coating grade cenospheres. Every batch undergoes rigorous testing to ensure particle size consistency, low iron content, excellent dispersion, and compliance with coating performance requirements.

★ ISO 9001:2015 Certified
◆ Particle Size Verification
★ Low Iron Content Control
◆ Coating Performance Test
★ Full Batch Traceability
◆ Digital COA Available
▸Independent Laboratory Verification · On-Site Quality Audits · 24/7 Technical Support

End-to-End Quality Control Process

▸Our quality control system ensures every batch meets exact coating application requirements, from raw material verification to final shipment.

01
Raw Material Inspection
Verify fly ash source
Chemical composition test
Physical property screening
02
Separation & Purification
Floatation separation
Magnetic iron removal
Precision size classification
03
In-Process Testing
Real-time density monitoring
Particle size analysis
Iron content check

04

Final Batch Inspection
Particle size verification
Iron content verification
Coating performance test
05
Packaging & Shipment
Package integrity check
Batch labeling verification
Container loading supervision

Coating Grade (CENOLITE 910) Testing Standards

Test Parameter Test Method Specification Frequency
Particle Size Distribution ISO 13320:2009 (Laser Diffraction) D50=45-60μm, D98=105-140μm Every Batch
pH Value ISO 787-9 (10% Aqueous Suspension) 7.0 ± 1.0 Every Batch
Iron Content (Fe₂O₃) X-Ray Fluorescence (XRF) < 6% Every Batch
True Density ISO 787-10 (Pycnometer) 0.70-0.90 g/cm³ Every Batch
Moisture Content ISO 787-2 (105°C, 2h) ≤ 0.3% Every Batch
Chemical Composition X-Ray Fluorescence (XRF) SiO₂ 55-65%, Al₂O₃ 27-33% Every 3 Batches
Dispersion Test High-Speed Mixing + Hegman Gauge No agglomeration, uniform dispersion Monthly

Core Testing Equipment

▸Our lab is equipped with state-of-the-art instruments for coating-grade cenospheres:

• Laser Particle Size Analyzer – ensures narrow PSD for smooth coatings

• XRF Spectrometer – controls iron content and chemical consistency

• Hegman Gauge – evaluates pigment and filler dispersion quality

• High-Speed Disperser – simulates paint production conditions

• Moisture Analyzer – accurate moisture content determination

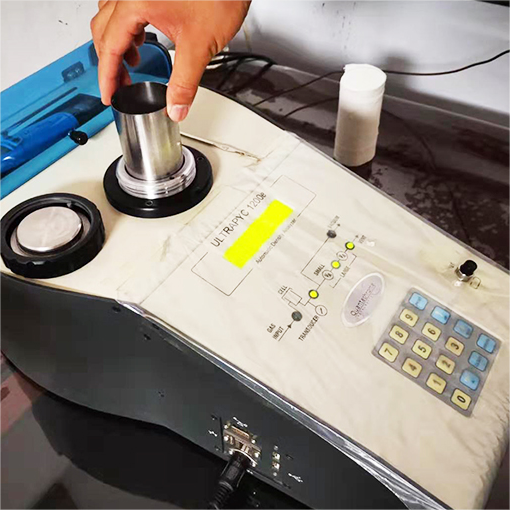

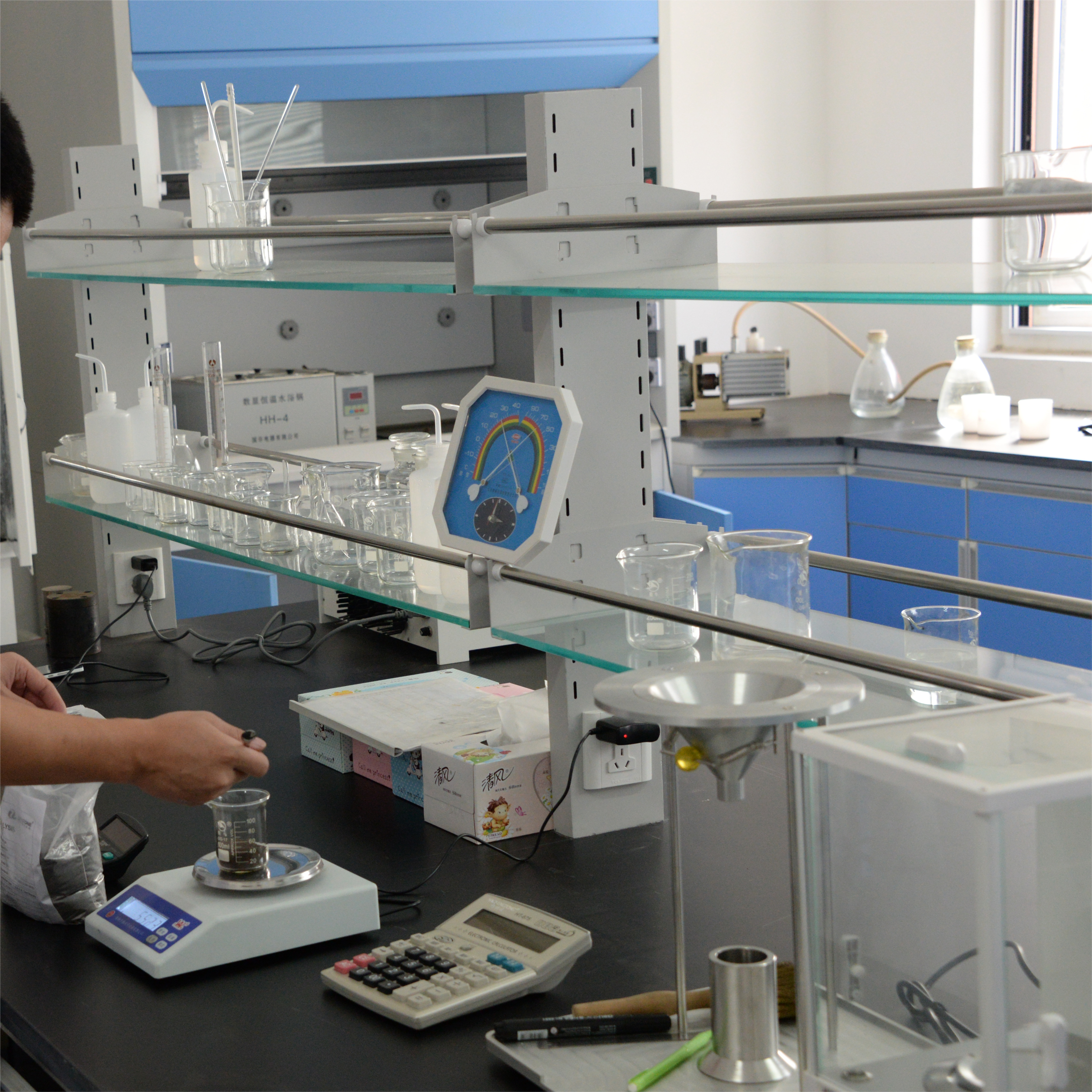

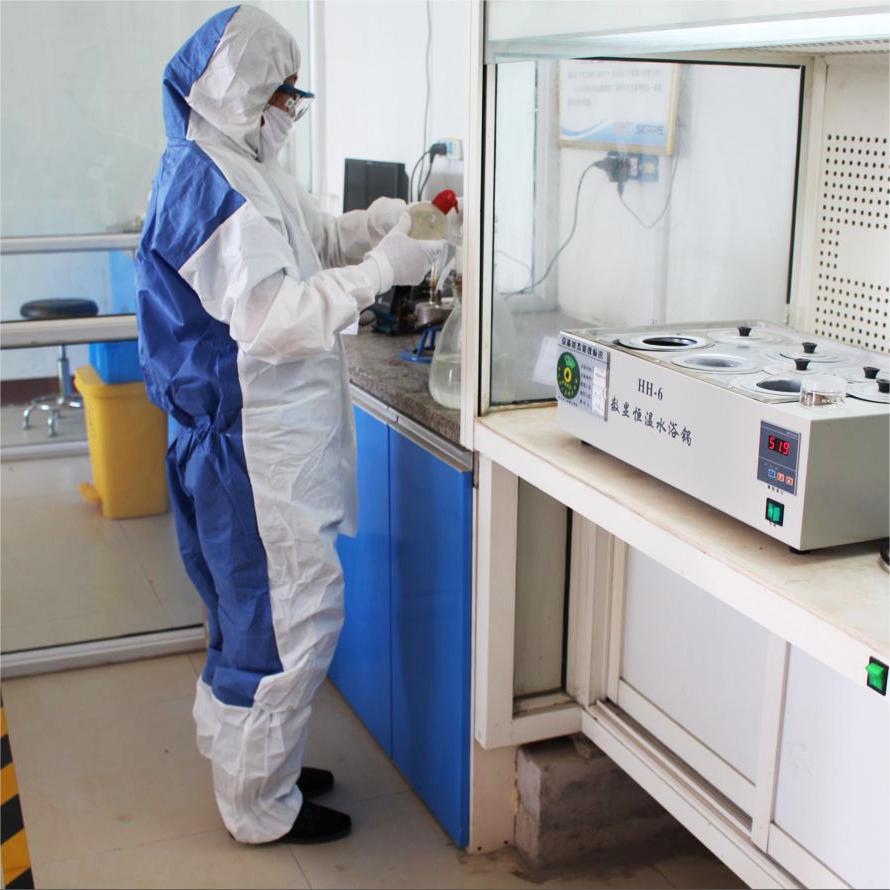

 Hydraulic Pressure Tester    Digital Density Analyzer   Hydraulic Pressure Tester

Quality Assurance & Traceability

▸Every batch of CENOLITE 910 is verified for the following critical parameters:

• Particle size distribution – laser diffraction per ISO 13320 ensures D50=45-60μm, D98=105-140μm for optimal film smoothness and packing.

• Iron content (Fe₂O₃) – controlled below 6% via XRF to maintain low color interference and high brightness in light-toned paints.

• pH stability – 10% aqueous suspension tested per ISO 787-9, maintained at 7.0 ± 1.0 to ensure resin and additive compatibility.

• Density consistency – true density checked per ISO 787-10 (0.70-0.90 g/cm³) to guarantee predictable loading and lightweight performance.

• Dispersion performance – high-speed mixing and Hegman gauge test confirm no agglomeration, ensuring uniform incorporation in paint systems.

Download Technical Documents

• For initial introduction and bidding documents
• Detailed particle size distribution, pH, and iron content

FAQ – Coating Grade Cenospheres

❓ What is the typical particle size range for CENOLITE 910?

▸ D50 = 45-60 μm, D98 = 105-140 μm, optimized for thin-film and industrial coatings.

❓ Why is iron content important for coating applications?

▸ Low iron (≤6%) ensures lighter color and better opacity, especially for white or light-colored paints and primers.

❓ Do you test dispersion performance?

▸ Yes, every batch is tested with high-speed mixing and Hegman gauge to ensure no agglomeration and uniform dispersion in paint systems.

❓ Can you provide a COA with every shipment?

▸ Yes, each shipment includes a digital Certificate of Analysis with batch-specific test results.

❓ Can you customize particle size for a specific coating resin?

▸ Yes, we offer custom cuts (e.g., D50=30-40μm for high-gloss finishes) upon request.

Need Custom Coating Grade Specifications?

Contact our coating specialists to discuss custom PSD, iron content targets, or to request batch samples for your formulation.
