Views: 211 Author: RKB Publish Time: 2026-08-12 Origin: SEPPETECH

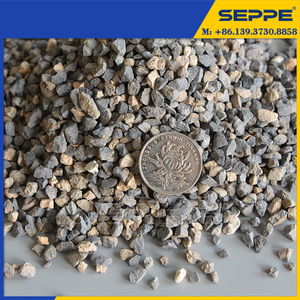

Calcined bauxite is sold as clinker, sized aggregate or powder. Refractory producers use it to build the mineral framework of bricks, castables and repair mixes.
The material still has to fit a formulation. A dense grain may be valuable in one lining and unsuitable in another. The binder, matrix and heat-treatment route decide what the finished refractory can do.
One useful distinction: calcined bauxite is a refractory raw material. It is not a ready-to-install lining and its PCE value is not a universal service-temperature rating.
80–90%
Commercial refractory bauxite covers several grades. Contract limits should identify the exact grade.
3.1–3.4 g/cm³
This is not loose poured density. The sampling and test method must be stated.
10–15%
Use this only as an industry guide. The acceptable limit depends on the refractory design.
0–1 to 5–8 mm
Fine powders are also supplied. The required cut must match the customer's grading plan.
Natural bauxite contains aluminum hydroxide minerals and gangue. During calcination, chemically bound water is removed and the material develops a ceramic structure. Corundum and mullite can form, together with a smaller glassy fraction. The result depends on the ore and the firing history.
After cooling, the clinker is crushed and screened. Larger grains can carry much of the mechanical load in a refractory body. Fine fractions fill the spaces around them and may take part in reactions within the matrix.
Bauxite aggregate and fines enter a shaped body. Pressing and firing then create the finished brick.
Graded bauxite forms part of the aggregate system. The matrix and binder control placement and later strength.
The grain becomes one component of a site-applied repair or lining material. Installation behavior must be tested with the complete mix.
Cast components are cured and dried under controlled conditions before delivery to the plant.
A cement kiln, a steel ladle and a foundry furnace do not expose a lining in the same way. Even two positions inside one unit may require different materials. Application names alone are therefore a poor basis for grade selection.
The ranges below are common industry references, not universal SEPPE guarantees. A purchase specification should use the agreed grade limits and name the laboratory method.
| Indicator | Typical reference | Purchasing meaning | Useful test reference |
|---|---|---|---|
| Al2O3 | About 80–90 wt.% | Identifies the broad grade, but cannot predict lining life by itself. | ISO 12677 XRF |
| SiO2 | About 5–10 wt.% | Relates to mullite and glass-forming constituents in the calcined material. | ISO 12677 XRF |
| Fe2O3 / TiO2 | Often 1–2% / 3–4% | These oxides help distinguish bauxite from purer synthetic alumina raw materials. | ISO 12677 XRF |
| Particle bulk density | About 3.1–3.4 g/cm³ | Indicates clinker densification. Do not confuse it with loose bulk density in a container. | State the supplier method |
| Apparent porosity | About 10–15% | Provides another view of the fired grain structure and should be compared like for like. | State specimen preparation and method |
| Particle-size distribution | Contract-specific | Controls how the material fits the customer's aggregate and matrix system. | ASTM C92 |
Do not compare unlike measurements. ISO 5017 and ASTM C20 cover dense shaped refractory products. They are useful for finished bricks or prepared test pieces, but their results should not be presented as the loose bulk density of bagged aggregate.
ASTM C24 measures pyrometric cone equivalent for fireclay and high-alumina refractories. PCE describes heat work under the test conditions. It does not state the safe operating temperature of a furnace lining.
The completed refractory may fail for reasons that do not involve melting. The matrix can soften, a bond can weaken or the installed body can crack. A realistic trial therefore matters more than a temperature copied from a raw-material brochure.
Start with the current formulation and define which property is being protected. Ask for a current TDS, then compare it with the batch COA. Sieve results should show the actual distribution rather than only the nominal size name.
Run the candidate material through the normal mixing and heat-treatment process. The finished test piece provides the evidence needed for a supplier change.
ISO 12677:2011 — Chemical analysis of refractory products by XRF
ASTM C92-95(2022) — Sieve analysis of refractory materials
ASTM C24-09(2022) — Pyrometric cone equivalent of high-alumina refractories
ISO 5017:2025 — Bulk density and porosity of dense shaped refractory products
Ceramics International — Phase composition of bauxite-based refractory castables
Technical review — Typical properties of high-alumina refractory raw materials
Send the target chemistry, required size distribution and intended refractory product.
SEPPE can prepare grade information and samples for your evaluation.
