| Quantity: | |
|---|---|
0-3mm,1-3mm,3-5mm
SEPPE
2508300000

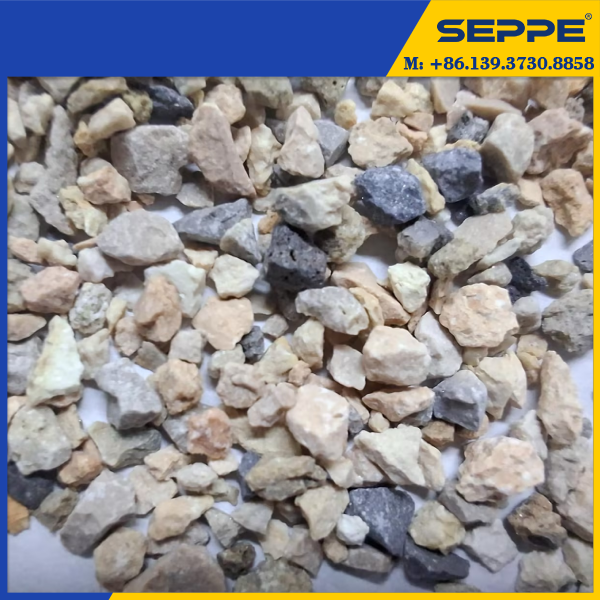

High PSV calcined bauxite engineered for anti-skid and high friction road surfacing applications worldwide.
▸ High PSV calcined bauxite is a premium refractory-grade aggregate produced by calcining selected raw bauxite at temperatures above 1600°C. Its exceptional Polished Stone Value (PSV ≥70) and high resistance to abrasion make it the material of choice for high friction surfacing (HFS) on highways, bridge decks, airport runways, and other critical traffic areas.
▸ The angular particle shape and extreme hardness ensure long-lasting skid resistance, even under heavy traffic loads and harsh weather conditions.
▸ Widely specified by highway authorities and used in high friction surfacing systems across Europe, North America, and Asia, it significantly improves road safety and reduces accident rates.
▸ Selected raw bauxite → High-temperature calcination (≥1600°C) → Crushing → Precision screening → Final inspection & packaging
▸ From bauxite ore to finished sand, every stage is controlled to ensure consistent quality:
01 — Raw Material & Supply · Own mines, Al₂O₃ ≥ 65%
02 — Calcination Process · Rotary kiln at 1450–1550°C
03 — Processing & Grading · Crushing, screening & magnetic separation
04 — Testing & Delivery · Full lab testing & global packaging
▸ Our high PSV calcined bauxite delivers critical performance advantages for high friction surfacing:
▸Exceptional Skid Resistance — polished stone value (PSV) of 70 minimum provides long-lasting anti-skid performance, far exceeding conventional aggregates.
▸Low Aggregate Abrasion Value — AAV of 10 maximum ensures minimal wear under heavy traffic, maintaining surface friction for years.
▸High Hardness (7.5-9.0 Mohs) — angular grains resist polishing and retain micro-texture even under sustained traffic.
▸Proven Worldwide — specified by highway authorities and used in high friction surfacing systems across Europe, North America, and Asia.
▸ XRF Chemical Analysis — every batch tested for Al₂O₃, Fe₂O₃, TiO₂, CaO, MgO content
▸ PSV Testing — polished stone value tested in accordance with BS EN 1097-8 standards
▸ AAV Testing — aggregate abrasion value per BS EN 1097-8 to ensure maximum wear resistance
▸ Particle Size Distribution — sieve analysis for accurate 0-1mm, 1-3mm, and 3-5mm grading
▸ Batch Traceability — full documentation from raw ore to final shipment
▸ High PSV 70+ — consistently exceeds the minimum requirement for high friction surfacing specifications worldwide.
▸ Low AAV 10 Max — exceptional abrasion resistance ensures long service life under heavy traffic conditions.
▸ Angular Particle Shape — provides excellent mechanical interlock with resin binders for durable surface systems.
▸ Proven Performance — trusted by highway authorities and contractors for critical safety applications globally.
▸ Consistent Quality — batch-to-batch uniformity ensures predictable application results and reliable friction performance.
▸ Highway anti-skid surfaces and high friction treatments
▸ Bridge deck waterproofing and surfacing systems
▸ Airport runways and taxiways
▸ Pedestrian crossings and cycle lanes
▸ Industrial flooring and loading bays
| Chemical Composition | |
| Al₂O₃ | 75 - 90% |
| TiO₂ | 2 - 3% |
| SiO₂ | 6 - 18% |
| Fe₂O₃ | 0.5 - 2.5% |
| CaO | 0 - 0.4% |
| MgO | 0 - 0.2% |
| K₂O + Na₂O | 0 - 0.4% |
| Physical Properties | |
| Shape | Angular |
| Polished Stone Value (PSV) | ≥ 70 |
| Aggregate Abrasion Value (AAV) | ≤ 10 |
| Specific Gravity | ≥ 3.70 g/cm³ |
| Bulk Density | 2.80 - 3.25 g/cm³ |
| Hardness | 7.5 - 9.0 Mohs |
| Moisture Content | 0.1 - 0.3% |
| Regular Sizes | 0-1mm, 1-3mm, 3-5mm |
| Grade | PSV | Main Application |
| Standard HFS Grade | PSV 70+ | Highway anti-skid surfacing, roundabouts, approaches |
| Premium HFS Grade | PSV 72+ | Bridge decks, airport runways, critical safety zones |
| Specialty Grade | PSV 75+ | Formula 1 circuits, high-speed rail platforms, extreme wear areas |
▸ SEPPE controls the entire production chain — from carefully selected high-PSV bauxite ore to fully integrated calcination, crushing, precision screening, and global logistics. Every batch is tested for polished stone value (PSV) and aggregate abrasion value (AAV) in accordance with international standards, ensuring your high friction surfacing material meets the most demanding specifications.
▸ With established supply to over 40 countries and dedicated technical support, SEPPE helps highway authorities, surfacing contractors, and asset managers achieve safer roads with proven, long-lasting skid resistance. Flexible packaging and OEM services are available.
▸ 25 kg bags, 50 kg bags, 1 MT jumbo bags
▸ 20' FCL: approx 25-27 MT
▸ OEM private label and custom packaging supported
▸ It is used in high friction surfacing (HFS) systems on highways, bridge decks, airport runways, and other critical traffic areas to improve skid resistance and road safety.
▸ Our standard grade consistently achieves PSV 70+, with premium grades reaching PSV 72+ and specialty grades at PSV 75+. All batches are tested in accordance with BS EN 1097-8.
▸ The most commonly used sizes are 0-1mm, 1-3mm, and 3-5mm. These are typically blended in specific proportions depending on the surfacing system and contractor specification.
▸ Yes. PSV, AAV, and chemical analysis certificates are provided with every shipment to ensure full compliance with project specifications.
▸ Contact SEPPE for: • Free Samples • PSV Test Certificates • OEM Packaging Options • Bulk Container Pricing
